Radio Front Floor Console Speaker Replacement
WARNING: This page is about a different car, the 2017 GMC Acadia Limited, 2017 Chevrolet Traverse, and 2017 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

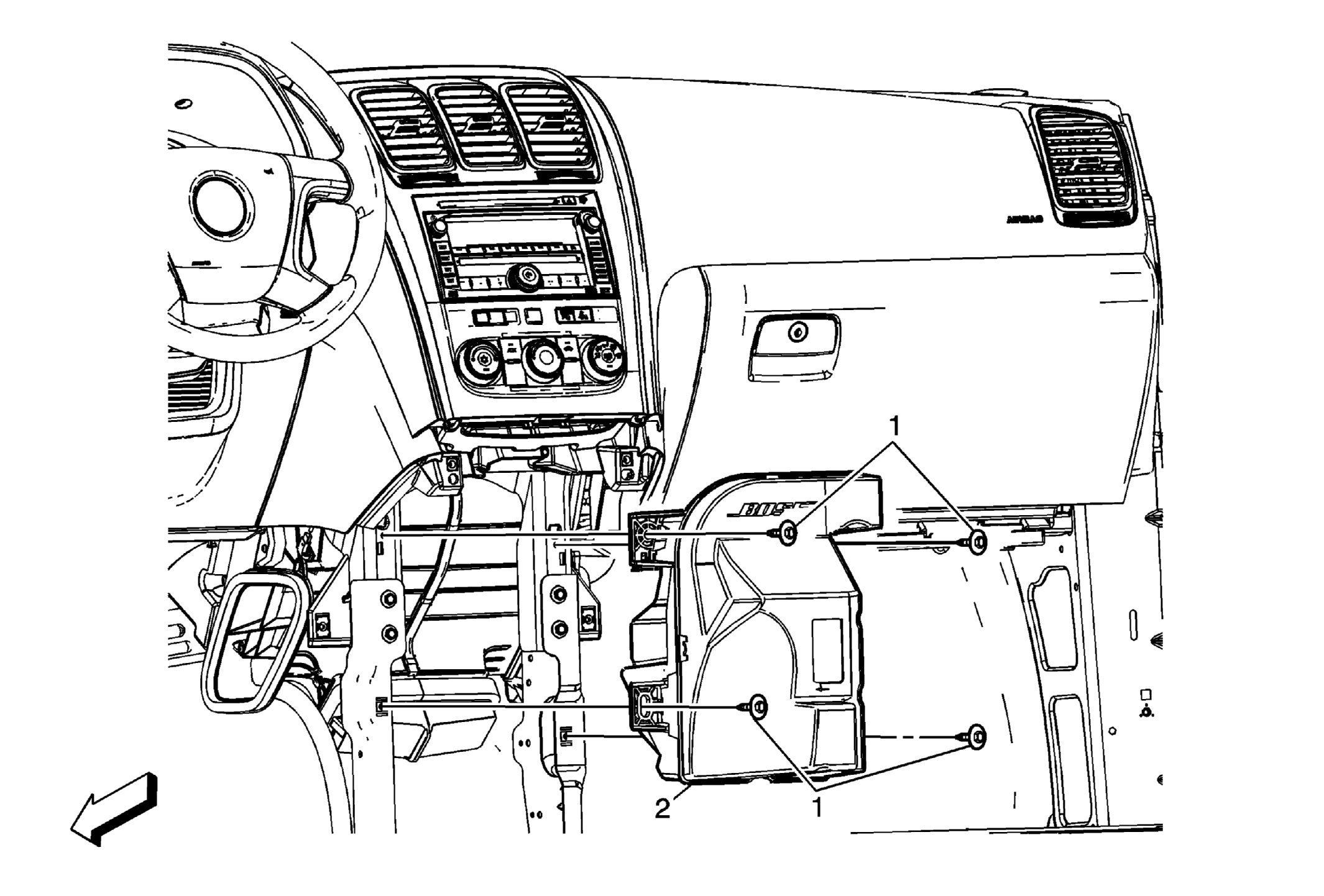

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front floor console assembly. Refer to Front Floor Console Replacement (Acadia)Front Floor Console Replacement (Enclave)Front Floor Console Replacement (Traverse) . |
|
| 1 | Radio Front Floor Console Speaker Screws (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Radio Front Floor Console Speaker Assembly Procedure Disconnect the electrical connector. |
