Radio Antenna Base Replacement
WARNING: This page is about a different car, the 2017 GMC Acadia Limited, 2017 Chevrolet Traverse, and 2017 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

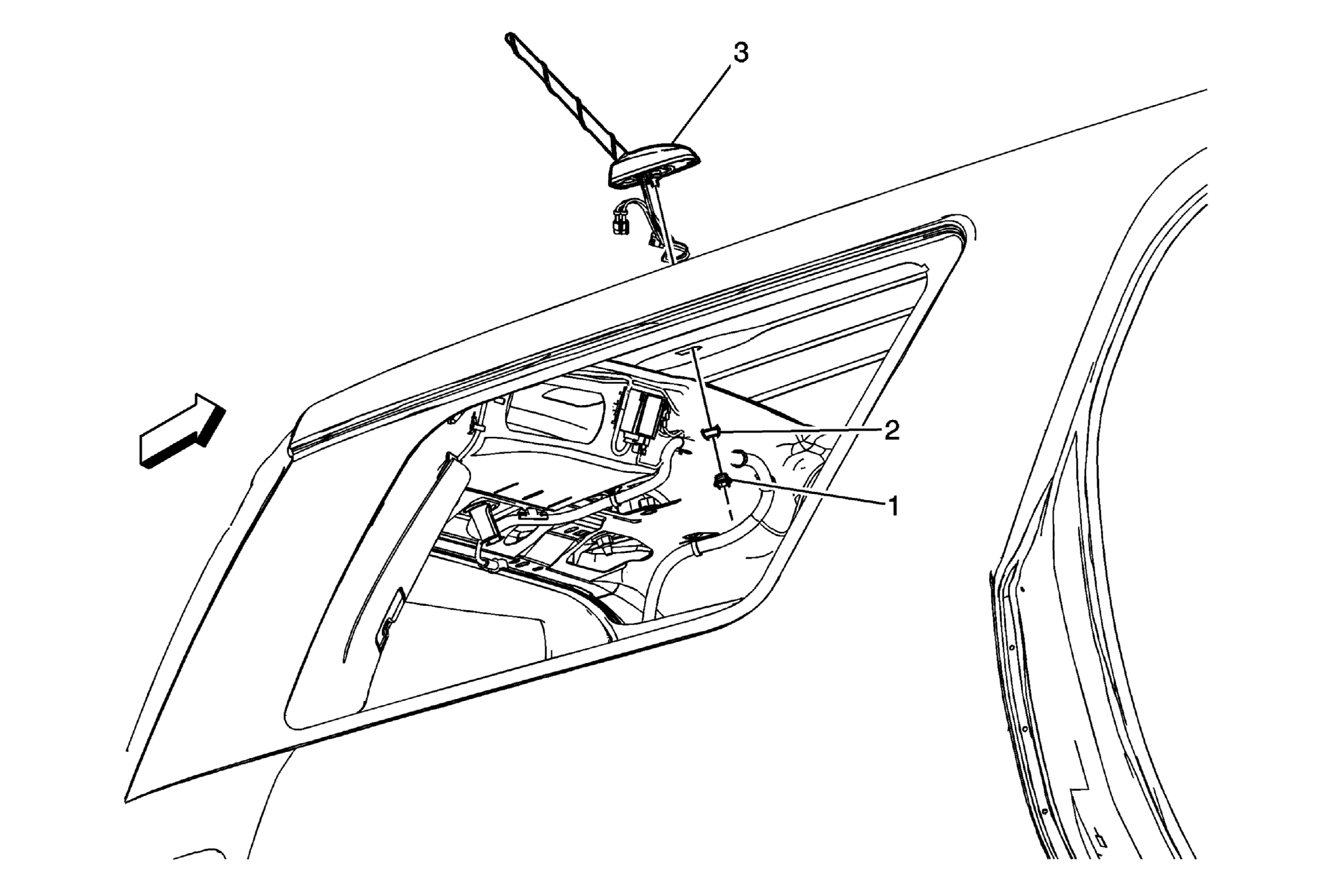

| Callout | Component Name |
|---|---|
| Preliminary Procedure Lower the rear of the headliner. Refer to Headlining Trim Panel Replacement . |
|
| 1 | Radio Antenna Base Nut
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Radio Antenna Base Washer |
| 3 | Radio Antenna Base Assembly Procedure Disconnect the electrical connections. |
