Multimedia Receptacle Replacement
WARNING: This page is about a different car, the 2017 GMC Acadia Limited, 2017 Chevrolet Traverse, and 2017 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the instrument panel center compartment. Refer to Instrument Panel Center Compartment Replacement (Acadia)Instrument Panel Center Compartment Replacement (Enclave)Instrument Panel Center Compartment Replacement (Traverse) . |
|

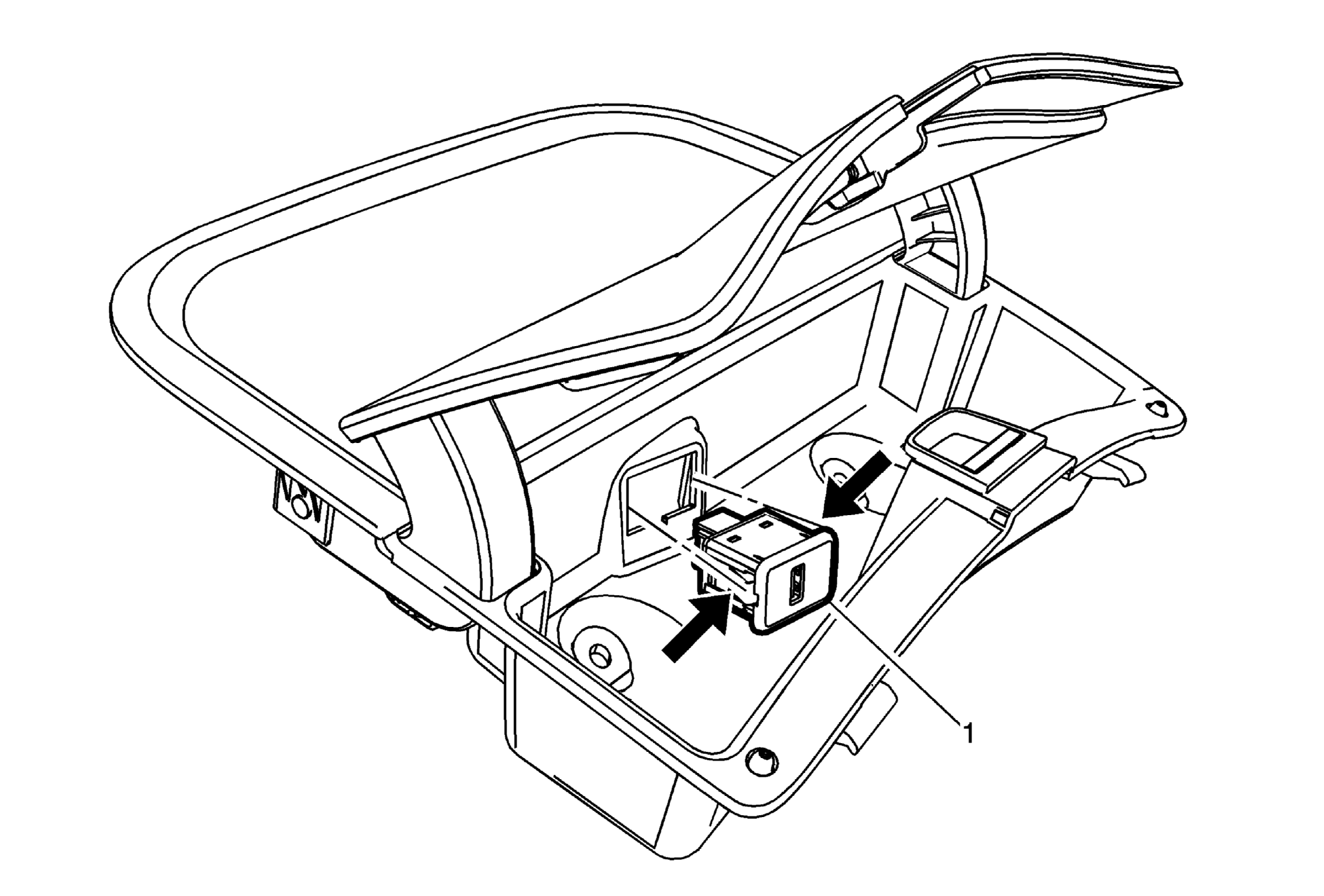

| 1 | Multimedia Receptacle Procedure Depress the tabs on the receptacle to remove. |
