Mobile Telephone Microphone Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia Limited, 2017 Chevrolet Traverse, and 2017 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

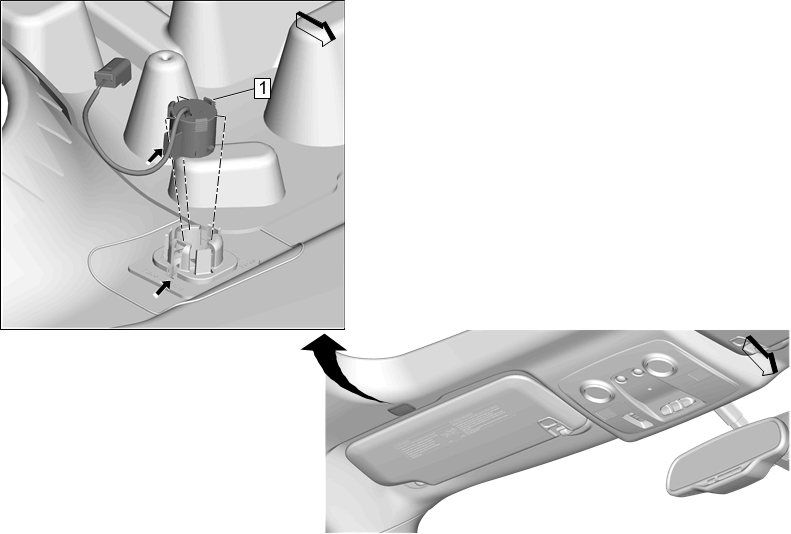

Fig 1: Mobile Telephone Microphone

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure It is only necessary to lower the headliner. Only do those steps in headliner replacement that will lower the headliner enough to gain access to the part. Headlining Trim Panel Replacement
1	Mobile Telephone Microphone Procedure Disconnect the electrical connector. Depress three tabs to release the microphone from the grille. NOTE: If installing a new microphone, ensure the arrow on the backplate is facing forward in vehicle position and make the key opening larger to support the larger key.

Callout

Component Name

Preliminary Procedure
It is only necessary to lower the headliner. Only do those steps in headliner replacement that will lower the headliner enough to gain access to the part. Headlining Trim Panel Replacement

Mobile Telephone Microphone

Procedure

Disconnect the electrical connector.
Depress three tabs to release the microphone from the grille.

NOTE:

If installing a new microphone, ensure the arrow on the backplate is facing forward in vehicle position and make the key opening larger to support the larger key.
