Front Upper Speaker Replacement
WARNING: This page is about a different car, the 2017 GMC Acadia Limited, 2017 Chevrolet Traverse, and 2017 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the windshield pillar garnish molding. Refer to Windshield Garnish Molding Replacement - Left Side , and Windshield Garnish Molding Replacement - Right Side . |
|

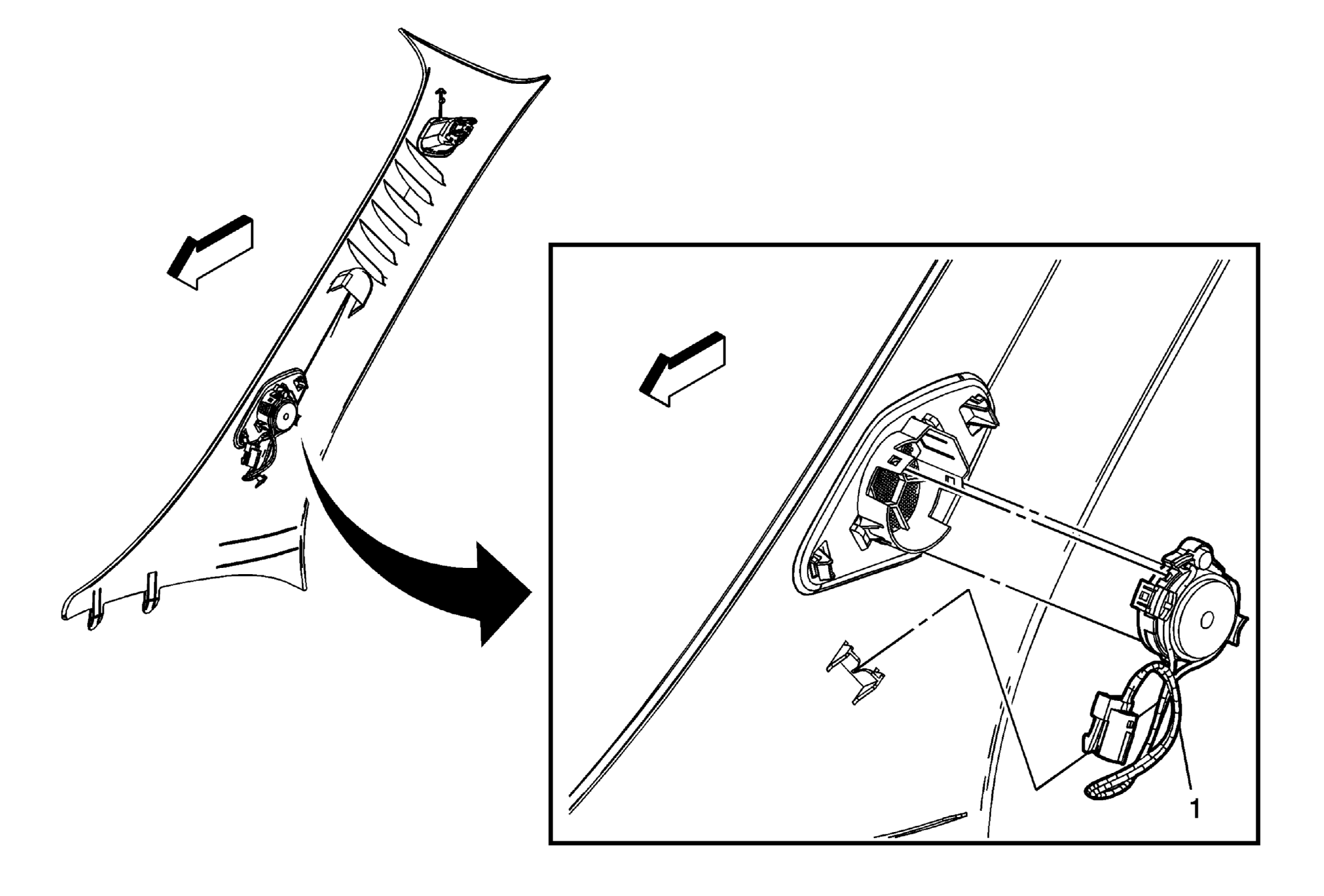

| 1 | Radio Windshield Side Garnish Molding Speaker Assembly TIP: Press in the tabs on the speaker to release from the windshield pillar. |
