Digital Radio Receiver Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia Limited, 2017 Chevrolet Traverse, and 2017 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

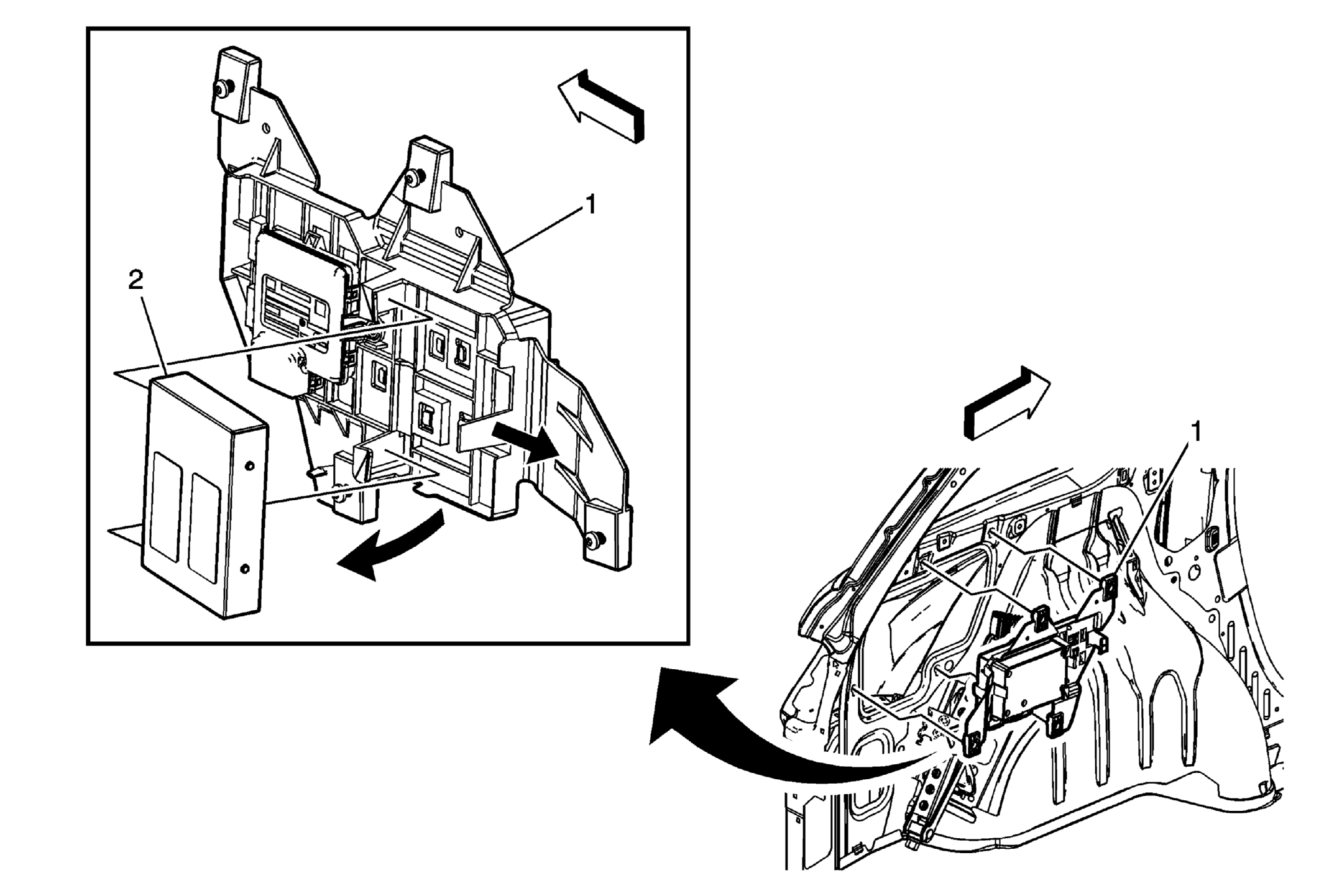

Fig 1: Digital Radio Receiver

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the left rear quarter lower trim panel. Refer to Quarter Lower Rear Trim Panel Replacement (Traverse with TB5)Quarter Lower Rear Trim Panel Replacement (Traverse with TB4)Quarter Lower Rear Trim Panel Replacement (Enclave with TB5)Quarter Lower Rear Trim Panel Replacement (Enclave with TB4)Quarter Lower Rear Trim Panel Replacement (Acadia with TB5)Quarter Lower Rear Trim Panel Replacement (Acadia with TB4) . Remove the liftgate close actuator bracket (if equipped). Refer to Liftgate Close Actuator Bracket Replacement .
1	Communication Interface Module Bracket Procedure Disconnect the electrical connectors.
2	Digital Radio Receiver Procedure Refer to Control Module References for programming and set up information. TIP: Pull tab to release the receiver.

Callout

Component Name

Preliminary Procedures

Remove the left rear quarter lower trim panel. Refer to Quarter Lower Rear Trim Panel Replacement (Traverse with TB5)Quarter Lower Rear Trim Panel Replacement (Traverse with TB4)Quarter Lower Rear Trim Panel Replacement (Enclave with TB5)Quarter Lower Rear Trim Panel Replacement (Enclave with TB4)Quarter Lower Rear Trim Panel Replacement (Acadia with TB5)Quarter Lower Rear Trim Panel Replacement (Acadia with TB4) .
Remove the liftgate close actuator bracket (if equipped). Refer to Liftgate Close Actuator Bracket Replacement .

Communication Interface Module Bracket
Procedure
Disconnect the electrical connectors.

Digital Radio Receiver
Procedure
Refer to Control Module References for programming and set up information.
TIP: Pull tab to release the receiver.
