S16 Driver Information Center Switch
WARNING: This page is about a different car, the 2017 GMC Acadia Limited, 2017 Chevrolet Traverse, and 2017 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
|
|

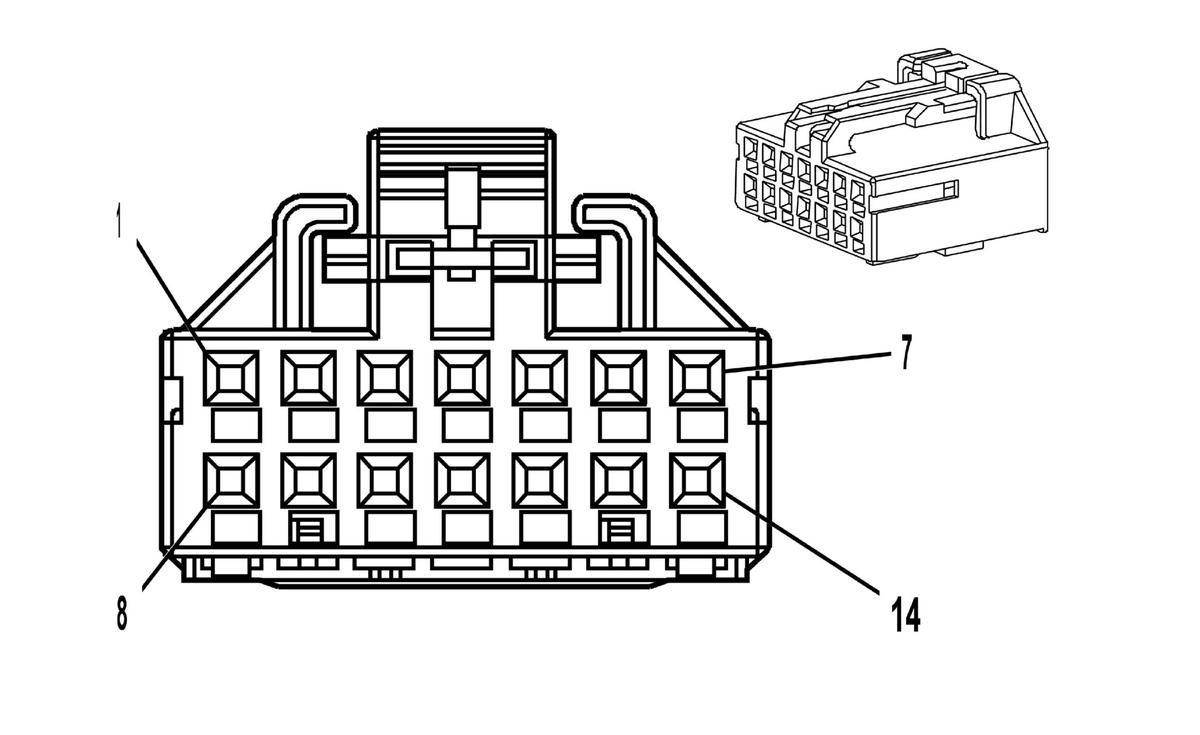

Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 936124-1
- Service Connector: 19301522
- Description: 14-Way F Micro-Quadlock Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575584 |
J-35616-64B (LT BU) |
J-38125-12A |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
VT/WH |
1382 |
LED Dimming Signal |
I |
UH9 |
| 2 |
0.35 |
VT |
5234 |
Passenger Seat Belt Indicator Control |
I |
UH9 |
| 3 |
0.35 |
PK |
1139 |
Run/Crank Ignition 1 Voltage |
I |
UH9 |
| 4 |
0.35 |
BU |
2307 |
Passenger Air Bag On Indicator Control |
I |
UH9 |
| 5 |
0.35 |
BK |
750 |
Ground |
I |
UH9 |
| 6 |
0.35 |
GN/WH |
1358 |
Driver Information Center Switch Signal |
I |
UH9 |
| 7 |
0.35 |
BK/WH |
1551 |
Signal Ground |
I |
UH9 |
| 8 |
0.35 |
RD/WH |
1840 |
Battery Positive Voltage |
I |
UH9 |
| 9 |
0.35 |
PK |
893 |
Driver Information Center Select Menu Switch Signal |
I |
UH9 |
| 10 |
0.35 |
TN |
2144 |
Hazard Switch Signal |
I |
UH9 |
| 11 |
0.35 |
GN |
2308 |
Passenger Air Bag Off Indicator Control |
I |
UH9 |
| 12 |
0.35 |
VT/WH |
6816 |
Indicator Dimming Control |
I |
UVF |
| 13 |
0.35 |
WH |
3152 |
Lane Departure Warning Indicator Control |
I |
UVF |
| 14 |
0.35 |
PK |
3153 |
Lane Departure Warning Disable Switch Signal |
I |
UVF |
