Installation Procedure
- Connect the electrical connector.
Instrument Cluster (2) - Install
- Instrument Cluster Bolt (1) - Install and tighten [4x] 2.5 N.m (22 lb in)
Instrument Panel Cluster Trim Plate (1) - Install - Instrument Panel Cluster Trim Plate Replacement
Instrument Panel Trim Pad - Right Side (1) - Install - Instrument Panel Trim Pad Replacement - Right Side
- Heater and Air Conditioning User Interface Control - Install - Heater and Air Conditioning User Interface Control Replacement
Instrument Panel Lower Trim Panel (1) - Install - Instrument Panel Lower Trim Panel Replacement
Instrument Panel Lower Center Trim Panel (1) - Install - Instrument Panel Lower Center Trim Panel Replacement

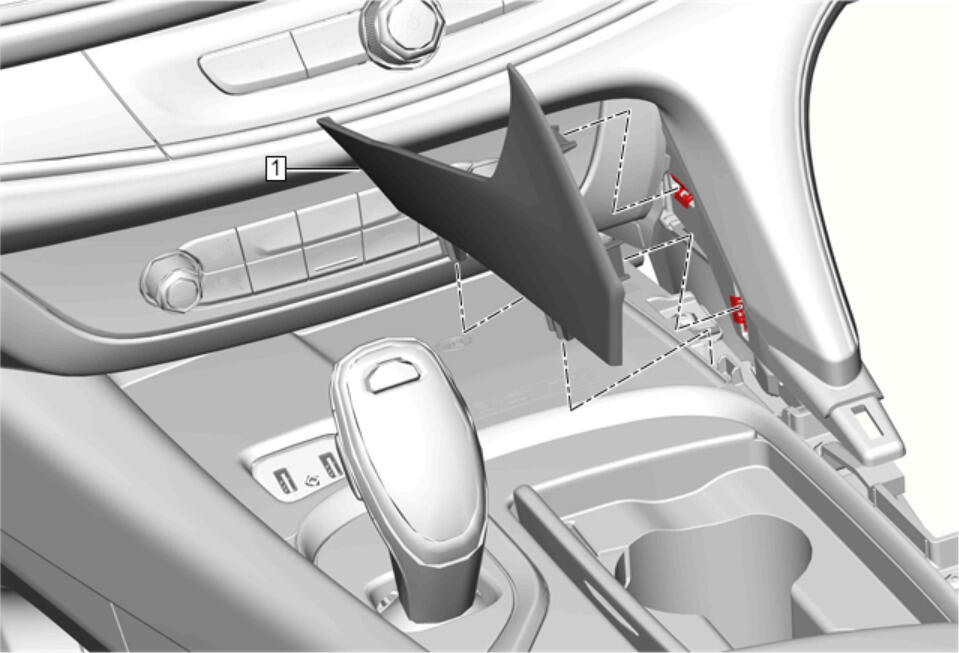

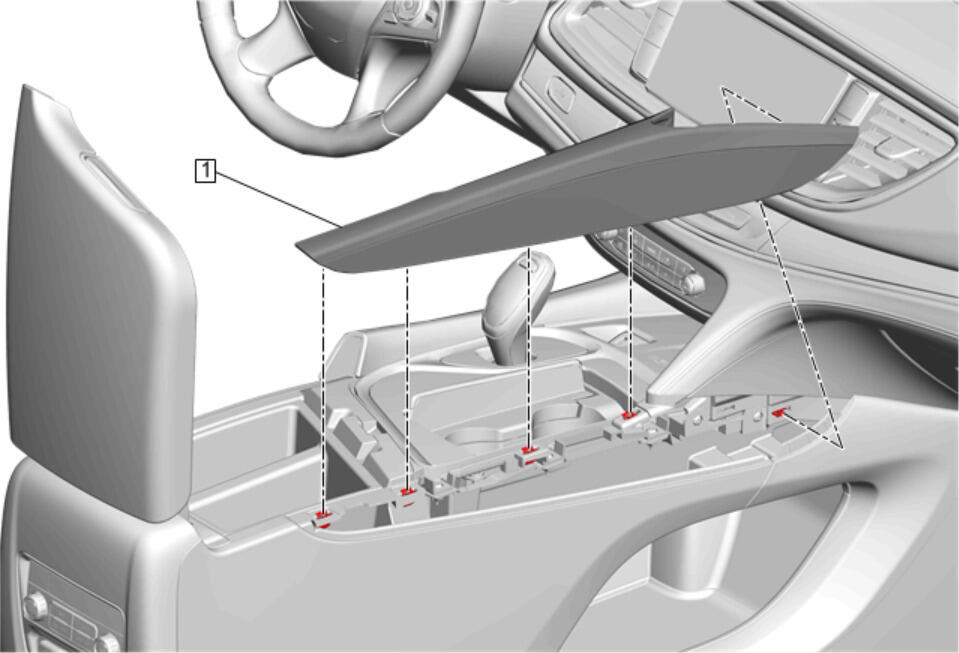

Front Floor Console Applique - Left Side (1) - Install - Front Floor Console Applique Replacement - Left Side

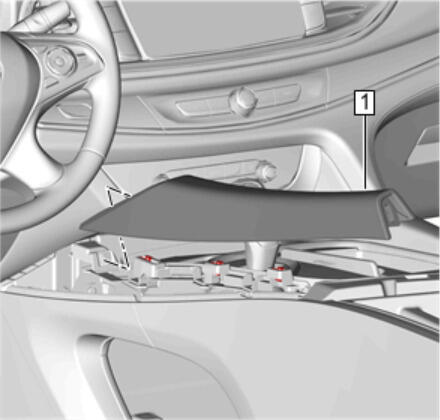

Front Floor Console Applique - Right Side (1) - Install - Front Floor Console Applique Replacement - Right Side
Instrument Panel Center Trim Plate Applique (1) - Install - Instrument Panel Center Trim Plate Applique Replacement
Instrument Panel Trim Plate Applique - Right Side (2) - Install - Instrument Panel Trim Plate Applique Replacement - Right Side
Instrument Panel Trim Pad - Left Side (2) - Install - Instrument Panel Trim Pad Replacement - Left Side
Instrument Panel Trim Plate Applique - Left Side (2) - Install - Instrument Panel Trim Plate Applique Replacement - Left Side
Instrument Panel Center Trim Pad (1) - Install - Instrument Panel Center Trim Pad Replacement
Instrument Panel Outer Trim Cover (1) - Install - Instrument Panel Outer Trim Cover Replacement
Refer to Fastener Caution .
