Outside Rearview Mirror Replacement

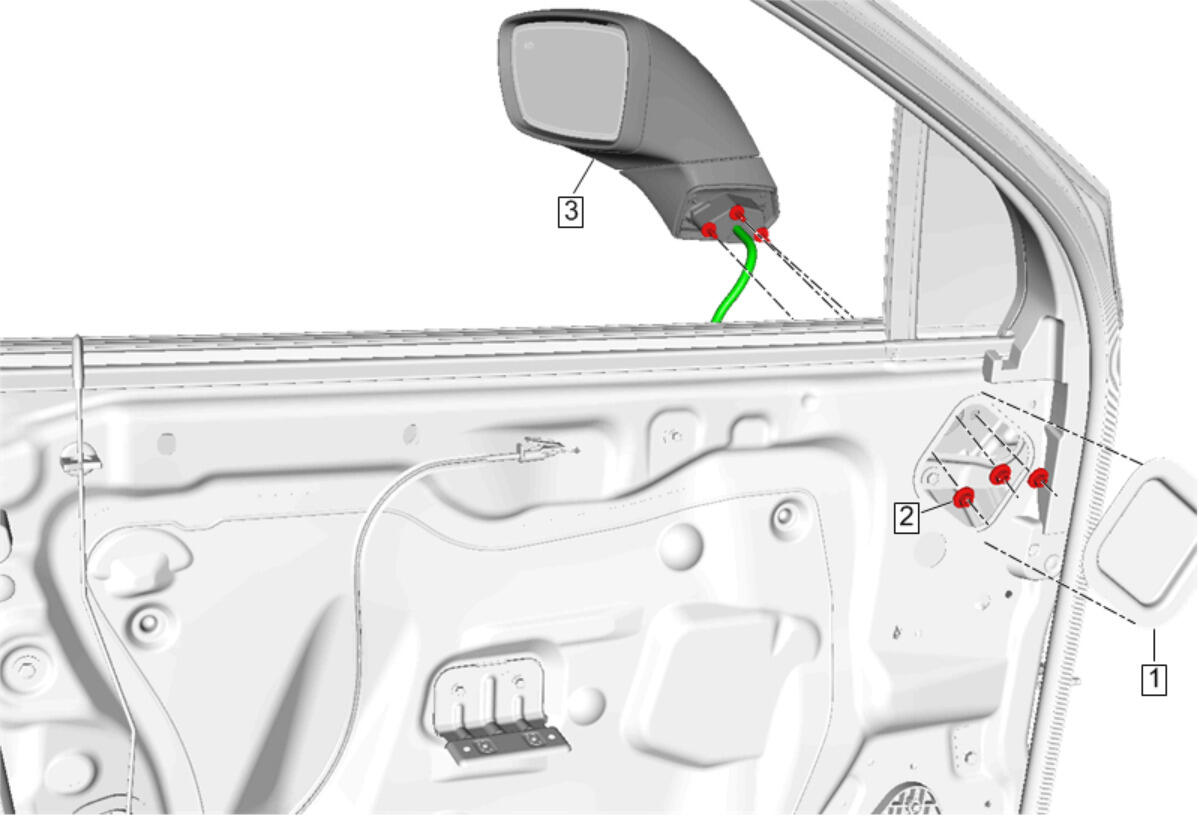

Callout	Component Name
Preliminary Procedure Front Side Door Trim Replacement
1	Front Side Door Water Deflector - Upper
2	Outside Rearview Mirror Reinforcement Nut [3x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
3	Outside Rearview Mirror Procedure Disconnect the electrical connector. Slide the wiring harness and grommet through the hole in the door to remove. Transfer components as necessary.
