Removal Procedure

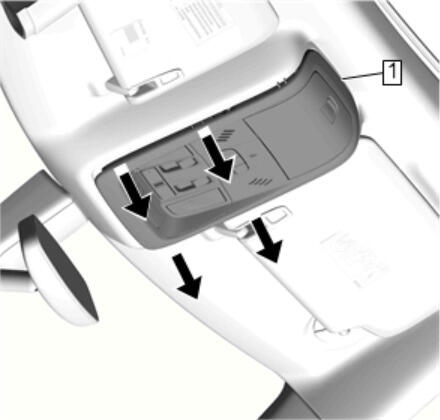

  1. GM4639183
    CAUTION:

    Do not exert downward force at the forward or rearward edge of the roof console assembly as irreversible damage will occur.

    Grasp the roof console (1) on both sides in line with the microphone and OnStar buttons and pull down to disengage the clips.

  2. GM4639184

    Clear the rear side roof console (1) tabs from the headliner.

  3. GM4639185

    Pull rearward to clear the forward roof console (1) tabs.

  4. Disconnect the electrical connectors.
