Front Floor Console Front Cover Replacement

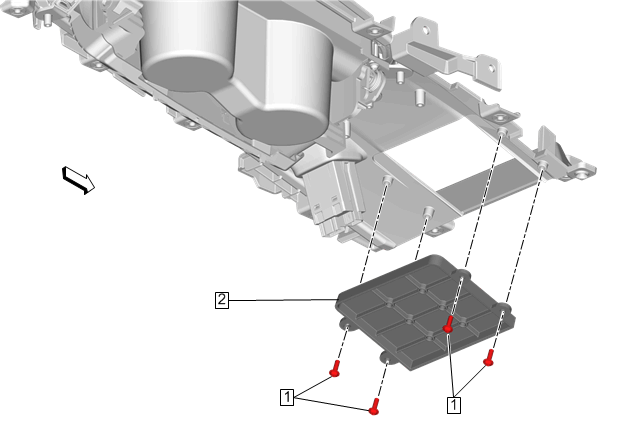

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Floor Console Trim Plate Replacement |
|
| 1 | Front Floor Console Front Cover Bolt [4x]
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Front Floor Console Front Cover |
