Installation Procedure

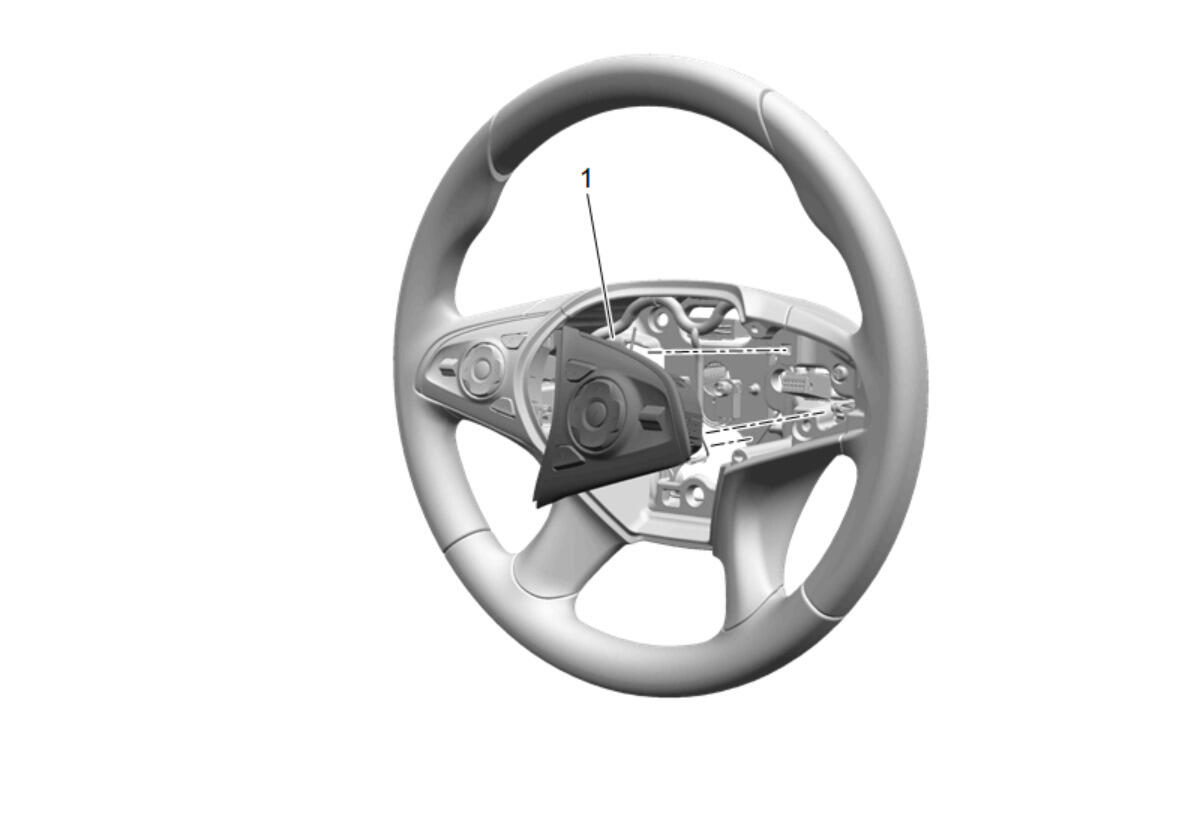

  1. GM5083874

    Connect the electrical connector.

  2. Radio Control Switch-Steering Wheel (1) - Install

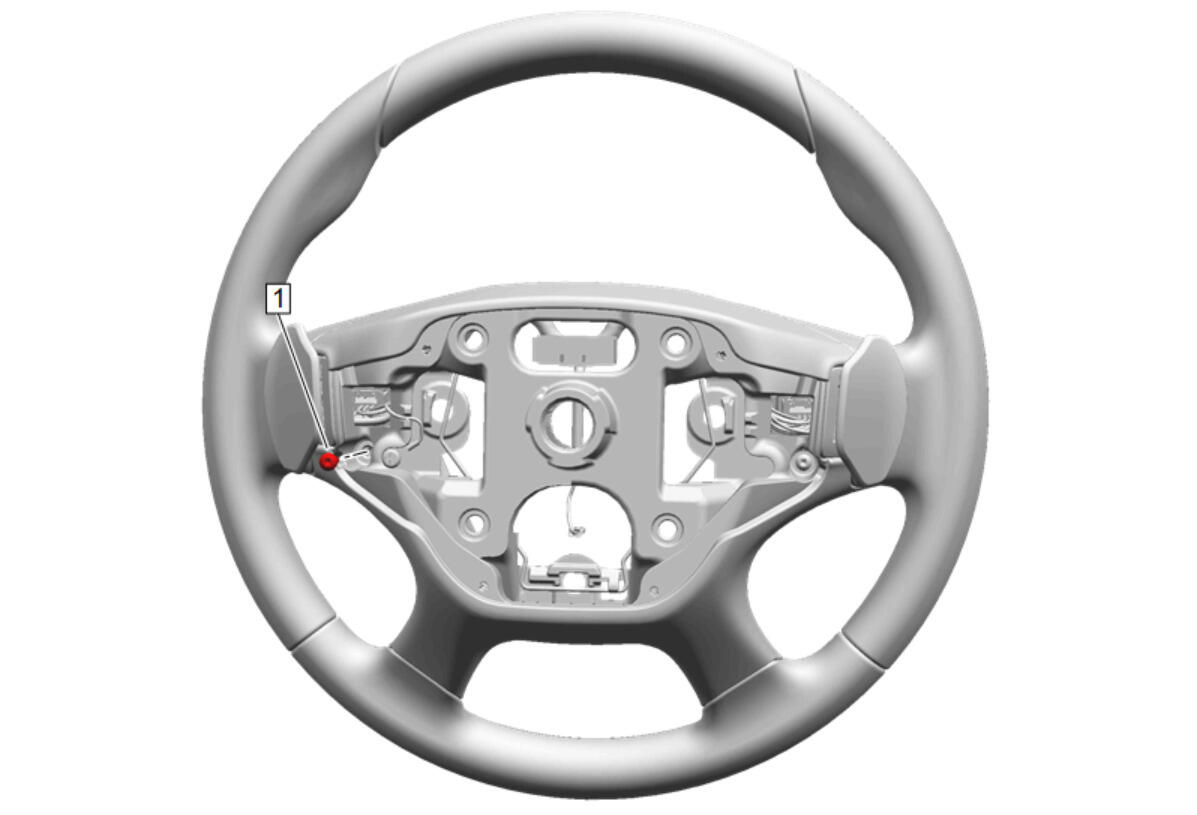

  3. GM5083883
    CAUTION:

    Fastener Caution .

    Install the steering wheel screw (1) and tighten to 2.5 N.m (2.2 lb in)

  4. GM4806246

    Steering Wheel Shroud (1) - Install

  5. GM4806049

    Steering Wheel (2) - Install - Steering Wheel Replacement

  6. Steering Wheel Airbag - Install - Steering Wheel Airbag Replacement
