Power Transfer Unit Extension Housing Installation
Power Transfer Unit Extension Housing Installation

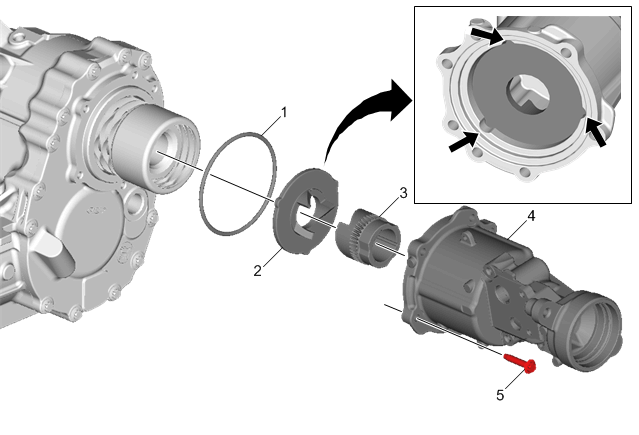

| Callout | Component Name |
|---|---|
| 1 | Extension Housing Cover Seal - O-Ring
NOTE:
Install a NEW seal. |
| 2 | Power Transfer Disconnect Linear Cam
NOTE:
Ensure the tabs on the OD of cam align into the notched areas of the housing. |
| 3 | Power Transfer Disconnect Rotary Cam |
| 4 | Power Transfer Unit Extension Housing Power Transfer Unit Case Cleaning and Inspection |
| 5 | Power Transfer Unit Extension Housing Bolt [5x] Tighten 22 N.m (16 lb ft) |
