Power Transfer Unit Cover Housing, Input Disconnect Shaft, Input Shaft, and Cover Assemble

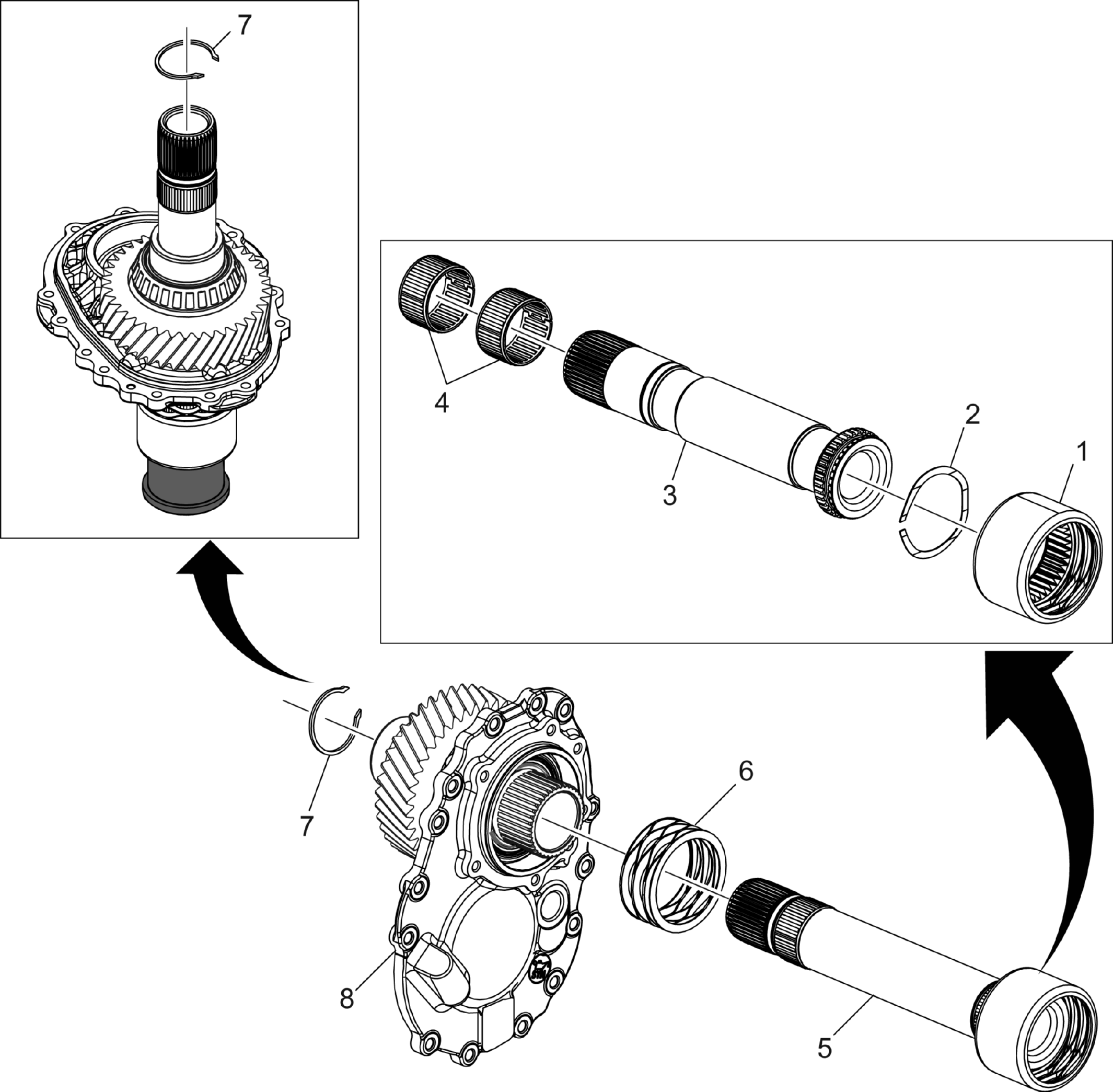

Fig 1: Exploded View Of Power Transfer Unit Cover Housing, Input Disconnect Shaft, Input Shaft And Cover Components
Power Transfer Unit Cover Housing, Input Disconnect Shaft, Input Shaft, and Cover Assemble
| Callout | Component Name |
|---|---|
| 1 | Power Transfer Unit Shift Sleeve Special Tools DT-48022 Output Bushing Installer Equivalent regional tools: Refer to:Special Tools . |
| 2 | Power Transfer Unit Wave Ring |
| 3 | Power Transfer Unit Input Shaft |
| 4 | Input Disconnect Shaft Needle Bearing [2x] |
| 5 | Power Transfer Unit Connect Spring |
| 6 | Power Transfer Unit Idler Gear Shaft Access Tube Assembly |
| 7 | Power Transfer Input Shaft Clip |
| 8 | Power Transfer Unit Cover Housing |
