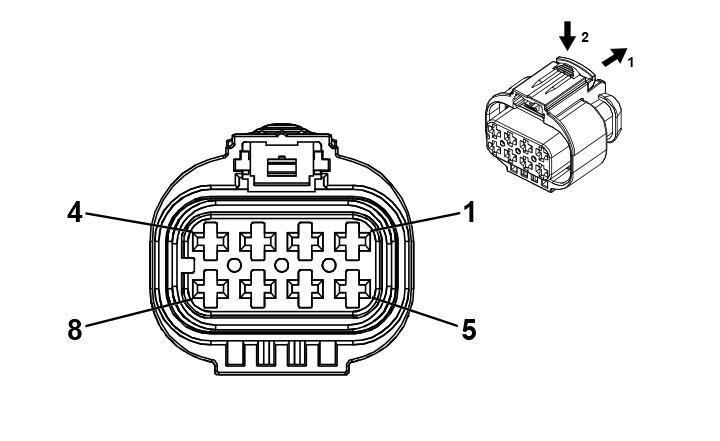

A7 Fuel Pump and Level Sensor Assembly
|
|
Connector Part Information
- Harness Type: Fuel Tank
- OEM Connector: 13581768
- Service Connector: Service by Harness - See Part Catalog
- Description: 8-Way F 2.8 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 - 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0 |
GY |
120 |
Fuel Pump Control |
I |
- |
| 4 |
0 |
BK/GN |
1580 |
Fuel Pump Low Reference |
I |
- |
| 5 |
0 |
BU/VT |
1589 |
Primary Fuel Level Sensor Signal |
I |
- |
| 6 |
0 |
BK/GN |
6281 |
Fuel Level Sensor Low Reference |
I |
- |
| 7 - 8 |
- |
- |
- |
Not Occupied |
- |
- |
