Buick
>>
2018
>>
Enclave Base
>>
Repair and Diagnosis (Single Page)
>>
Body & Frame
>>
Seats
>>
Power Seat System
>>
Schematic Wiring Diagrams
>>

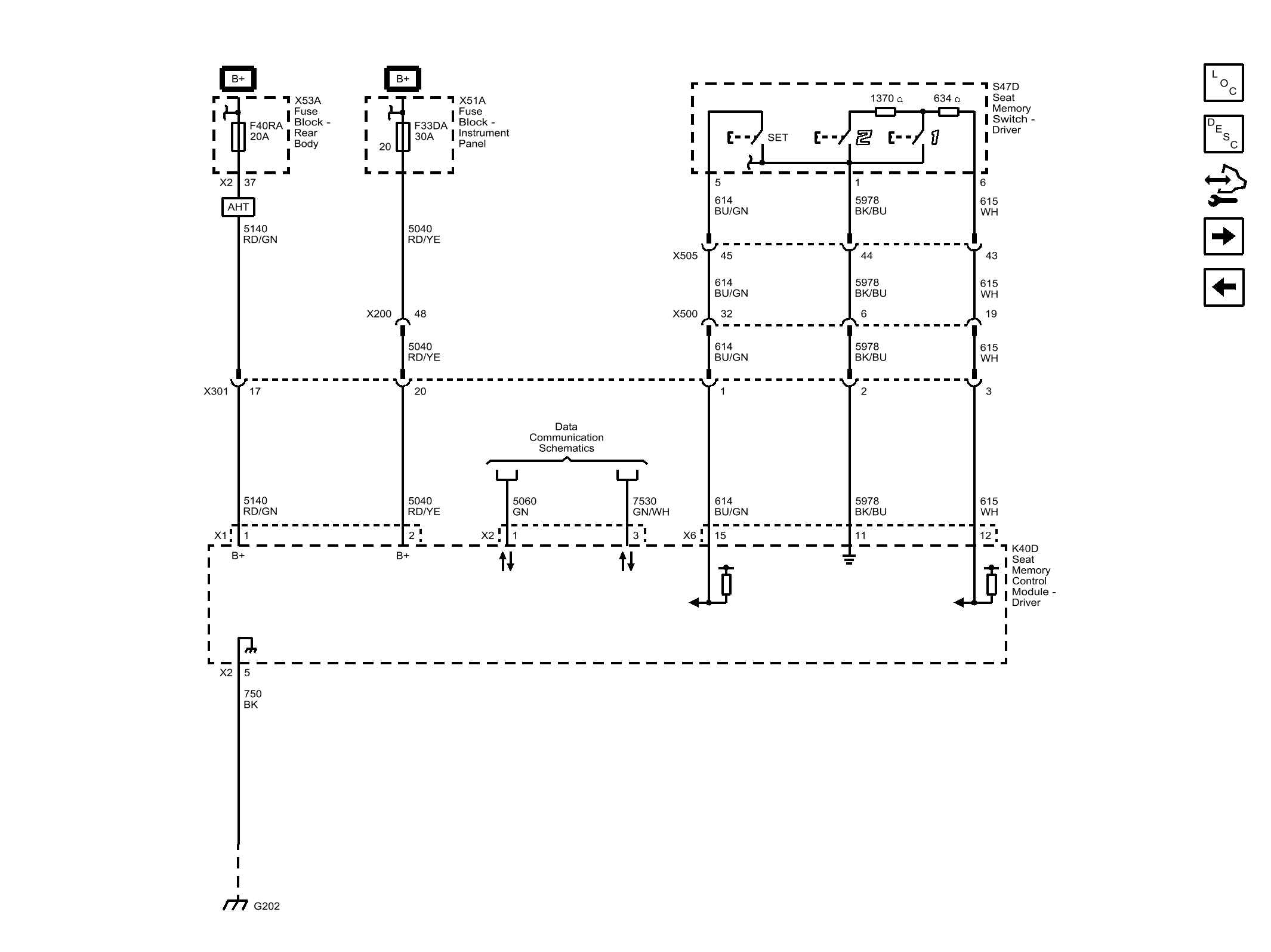

Driver Seat Wiring Schematics
>>
Module Power, Ground, Serial Data, and Memory Controls (AAB)
Module Power, Ground, Serial Data, and Memory Controls (AAB)
