Installation Procedure

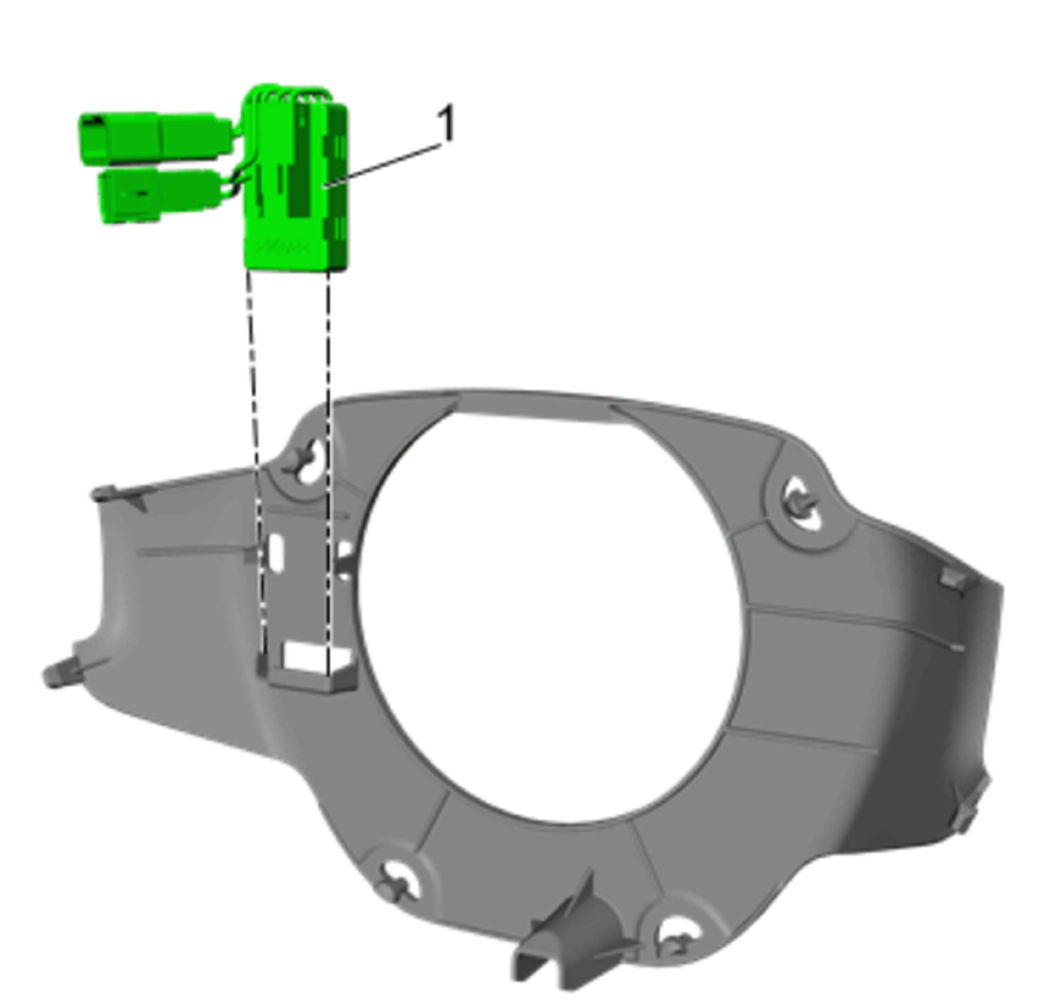

  1. GM4806862

    Steering Wheel Heat Control Module (1) - Install

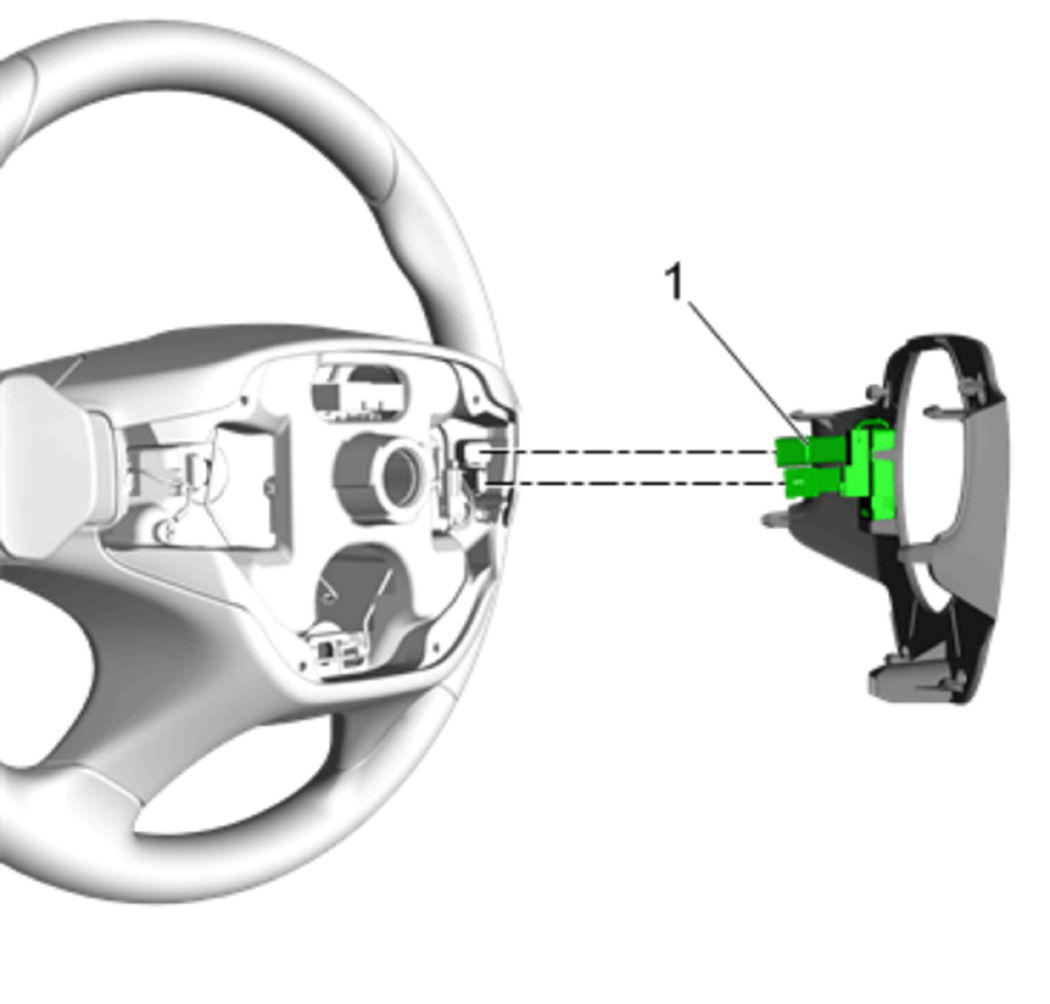

  2. GM4806864

    Connect electrical connection (1).

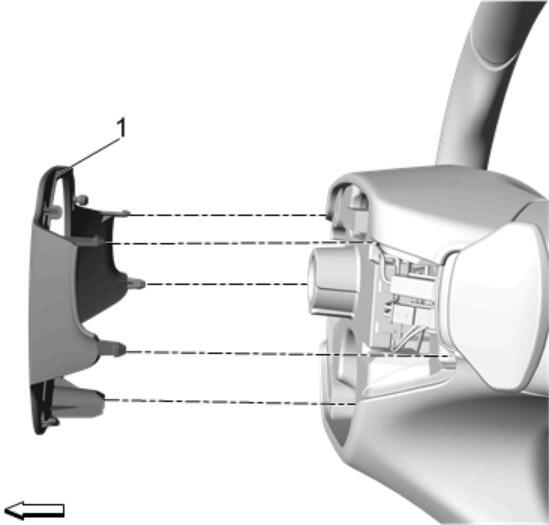

  3. GM4806246

    Steering Wheel Shroud (1) - Install

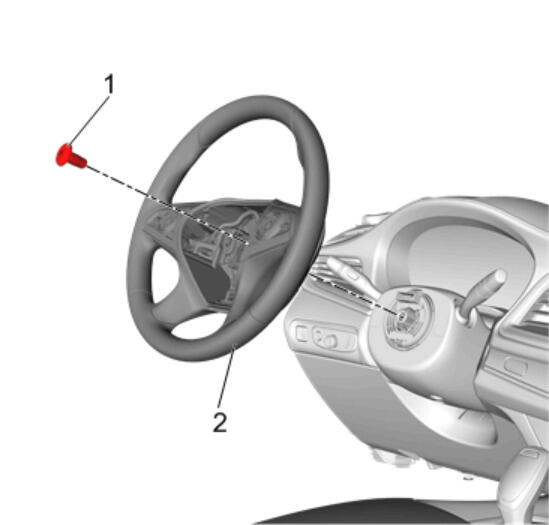

  4. GM4806049

    Steering Wheel (2) - Install - Steering Wheel Replacement

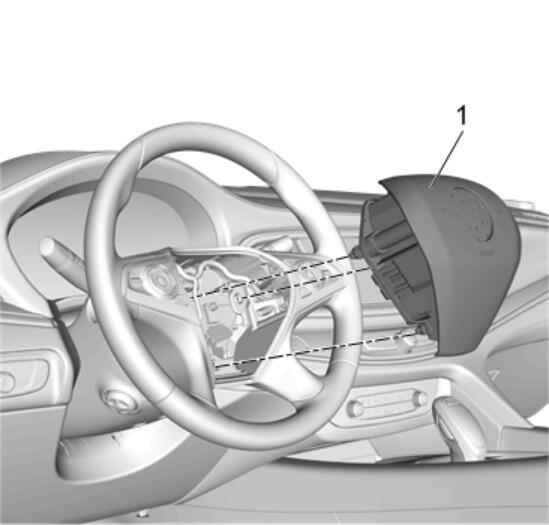

  5. GM4806796

    Steering Wheel Airbag (1) - Install - Steering Wheel Airbag Replacement
