Headlamp LED Driver Module Replacement

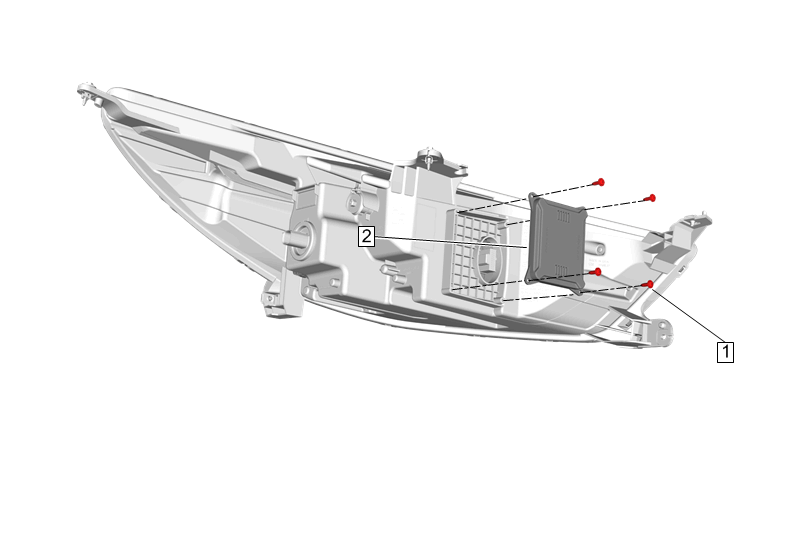

GM4822687
Callout Component Name
Preliminary Procedure
Headlamp Replacement
1 Headlamp LED Driver Module Bolt [4x]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Headlamp LED Driver Module
Procedure
Disconnect the electrical connector.
