Navigation Signal Splitter Replacement

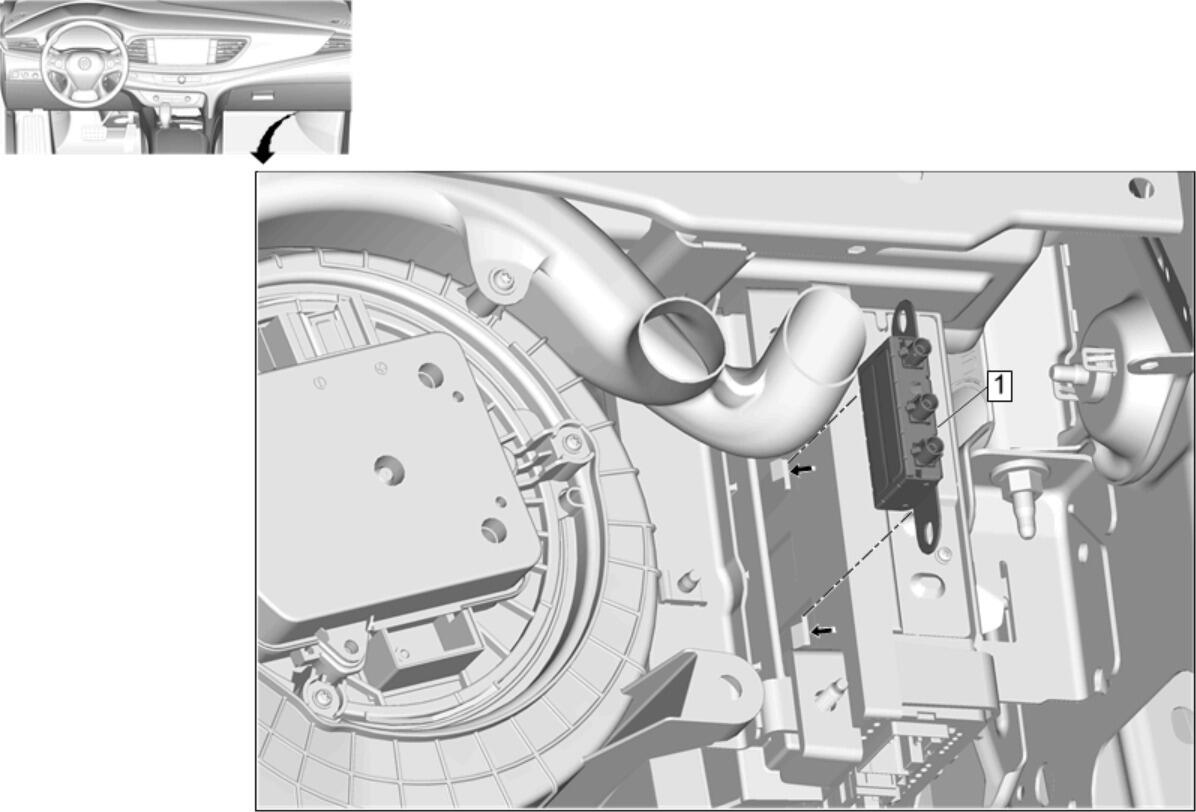

GM4787736
Callout Component Name
Preliminary Procedure
Human Machine Interface Control Module Bypass Module Bracket Replacement
1 Navigation Signal Splitter

Procedure

  1. Disconnect the electrical connectors.
  2. Release the retaining tabs.
