Body Control Module Shield Replacement

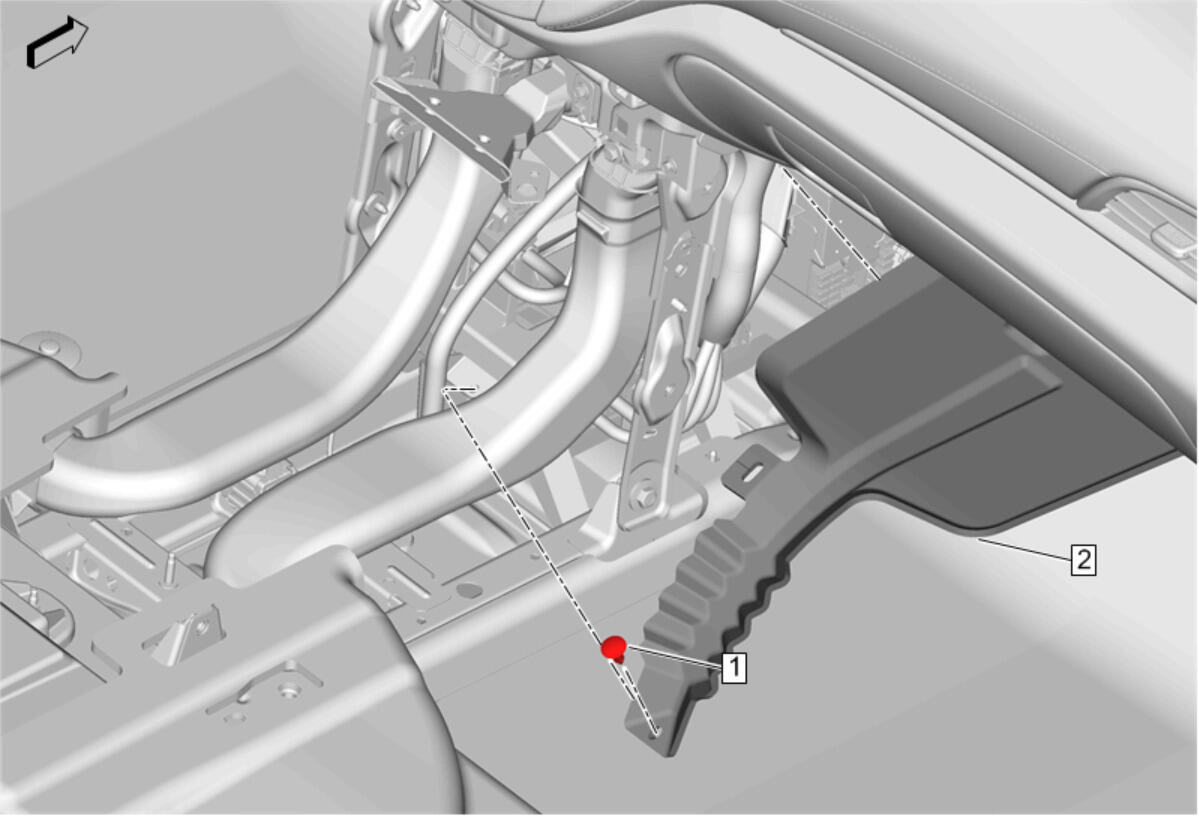

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Floor Console Replacement |
|
| 1 | Body Control Module Retainer |
| 2 | Body Control Module Shield Procedure Reposition the wiring harness. |
| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Floor Console Replacement |
|
| 1 | Body Control Module Retainer |
| 2 | Body Control Module Shield Procedure Reposition the wiring harness. |
