Quarter Window Regulator Replacement

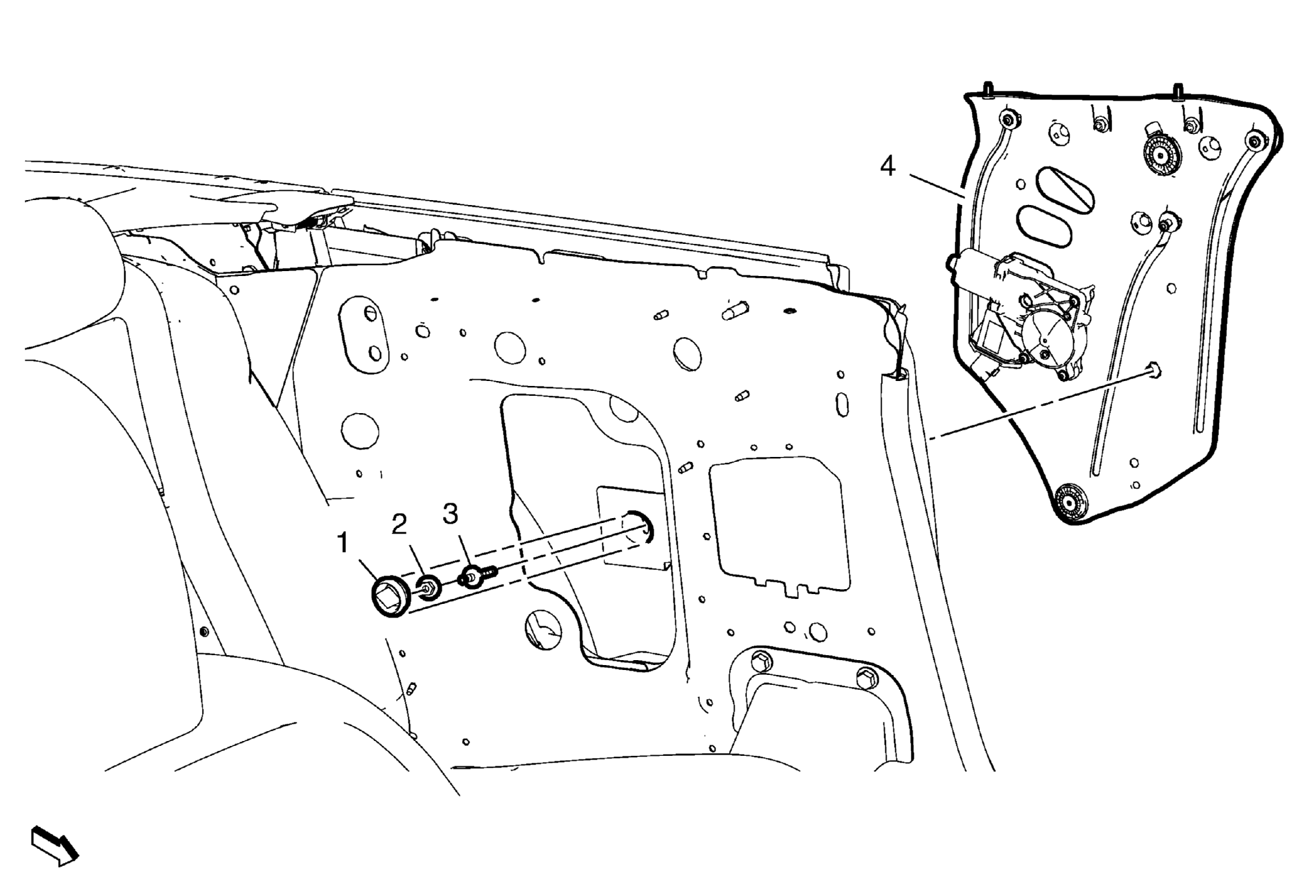

Callout	Component Name
Preliminary Procedure Remove the quarter window finish molding. Refer to Quarter Window Finish Molding Replacement .
1	Quarter Window Regulator Cap
2	Quarter Window Regulator Nut CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
3	Quarter Window Regulator Adjustment Stud
4	Quarter Window Regulator Procedure Remove the quarter window from the regulator. Refer to Quarter Window Replacement . Remove the quarter window regulator motor from the regulator. Refer to Quarter Window Regulator Motor Replacement . Adjust the quarter window. Refer to Quarter Window Adjustment .
