Front Side Door Window Replacement

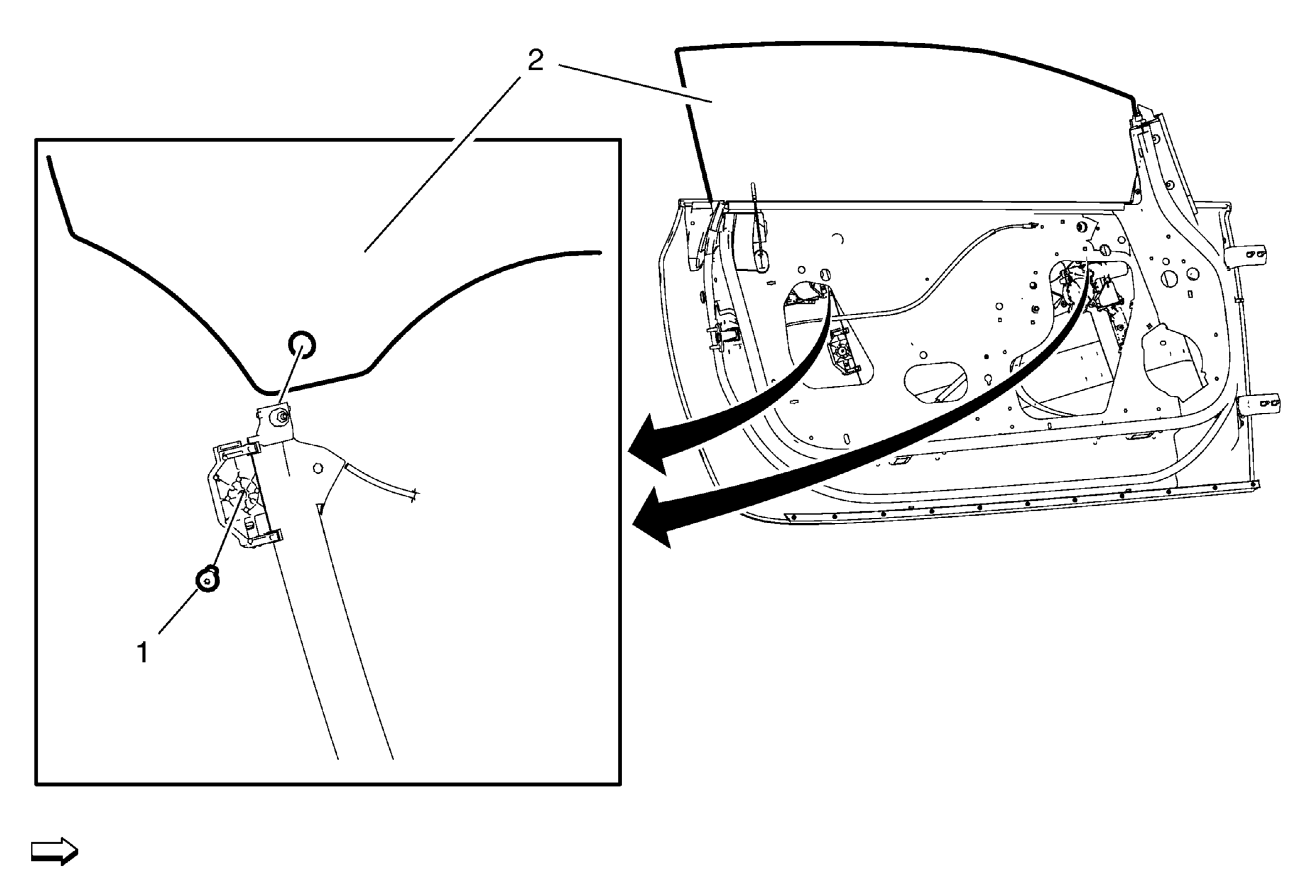

GM2969100

Callout

Component Name

Preliminary Procedures

Position the window approximately half way down in the door.
Remove the front side door water deflector. Refer to Front Side Door Water Deflector Replacement .
Remove the front side door outer sealing strip. Refer to Front Side Door Window Outer Sealing Strip Replacement .

1

Front Side Door Window Regulator Bolt (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

2

Front Side Door Window

Procedure

Rotate the front door window as necessary to remove it from the door.
Adjust the front side door window. Refer to Front Side Door Window Adjustment .
