Engine Shield Replacement

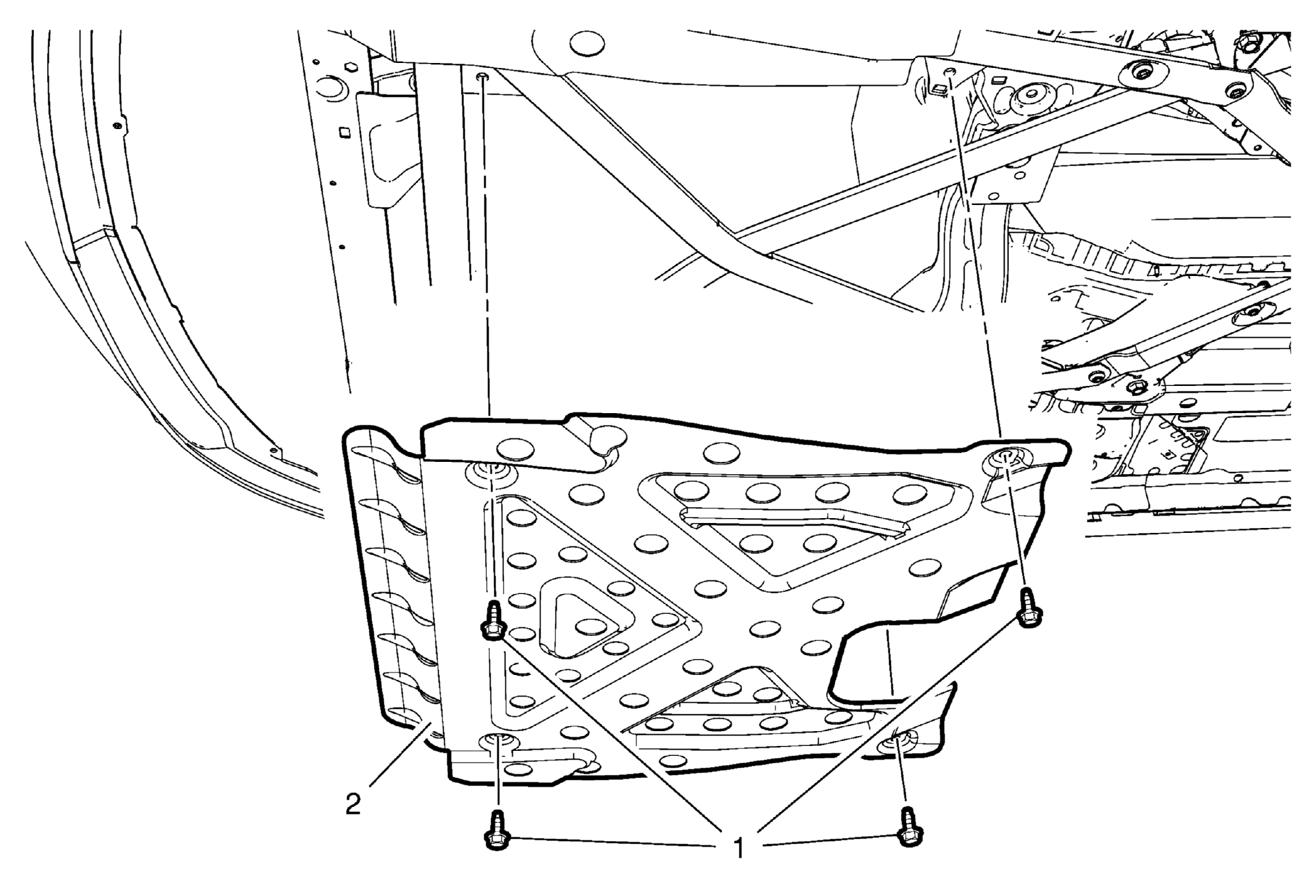

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Engine Shield Bolt (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 58 N.m (43 lb ft) |
| 2 | Engine Shield |
