Windshield Wiper Transmission Replacement

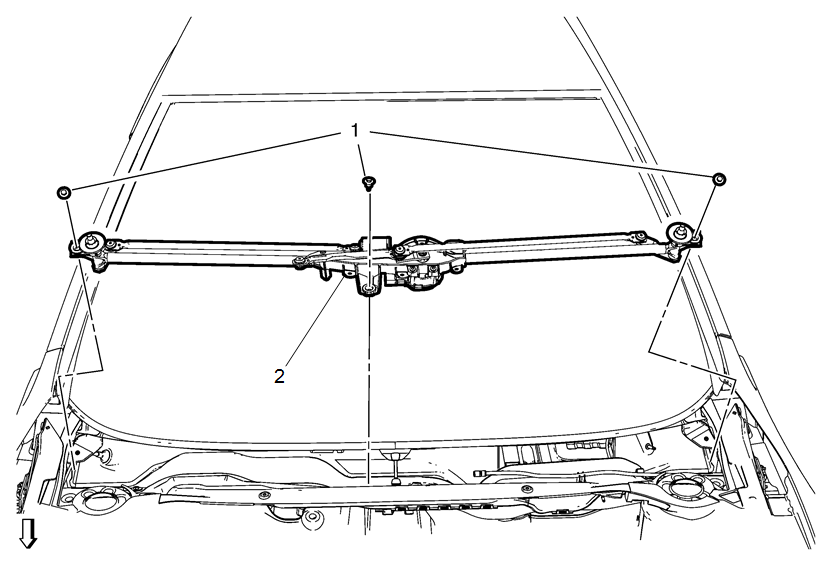

GM3650385

Callout

Component Name

Preliminary Procedures

Remove plenum water deflector - both sides. Refer to Plenum Water Deflector Replacement - Left Side .
Remove plenum water deflector - center. Refer to Plenum Water Deflector Replacement - Center .
Remove dash upper extension panel opening cover. Refer to Dash Upper Extension Panel Opening Cover Replacement .

1

Windshield Wiper Transmission Bolt (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

2

Windshield Wiper Transmission
Procedure
Disconnect electrical connector.
