Windshield Wiper Blade Replacement

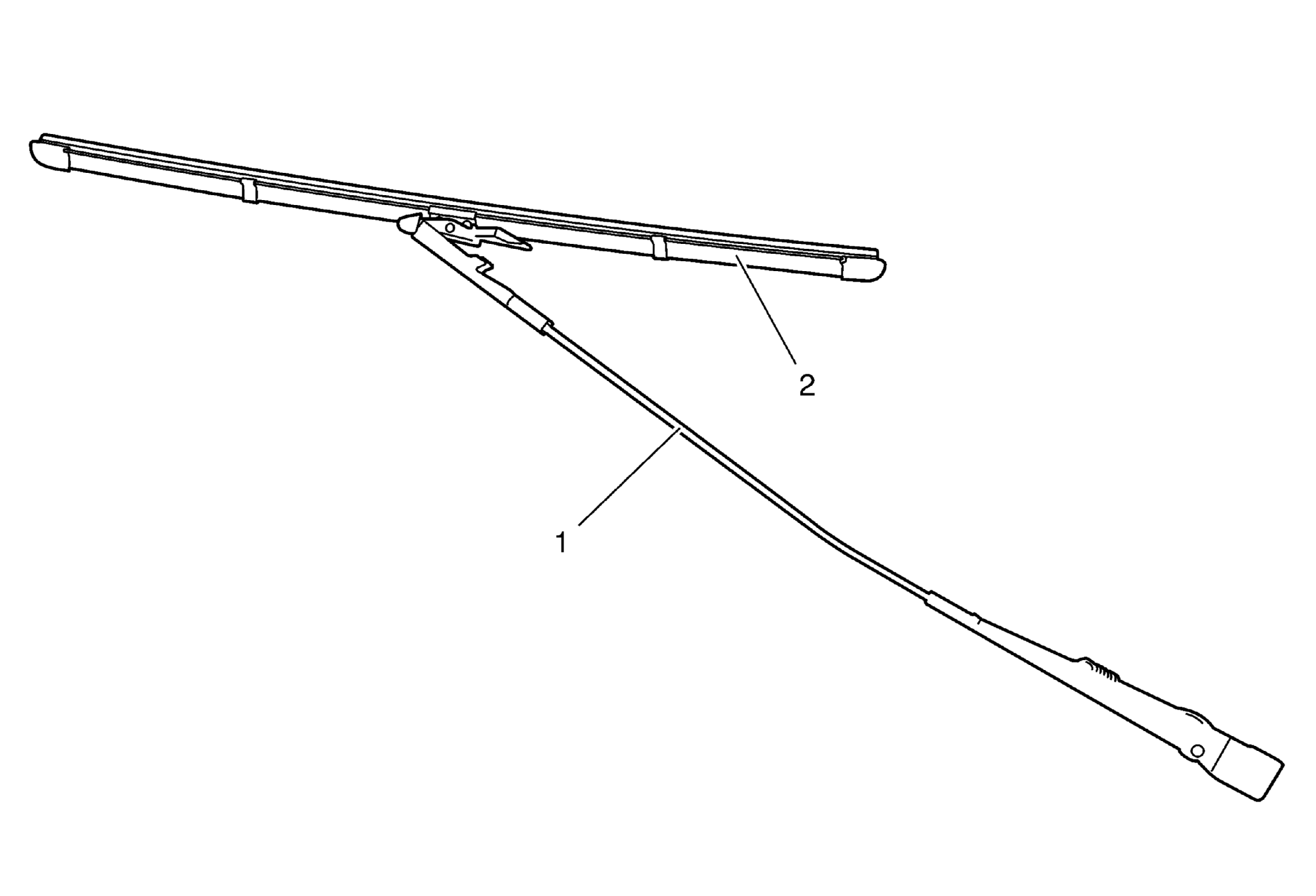

Callout	Component Name
Preliminary Procedures Raise the wiper arm up off the windshield.
1	Windshield Washer Arm
2	Windshield Washer Blade Procedure Discard and replace if rubber appears worn or does not wipe the windshield clean. Release the wiper blade straight from the wiper arm.

Callout

Component Name

Preliminary Procedures
Raise the wiper arm up off the windshield.

Windshield Washer Arm

Windshield Washer Blade

Procedure

Discard and replace if rubber appears worn or does not wipe the windshield clean.
Release the wiper blade straight from the wiper arm.
