Installation Procedure
In order to repair the damaged section of washer hose, proceed the following steps:

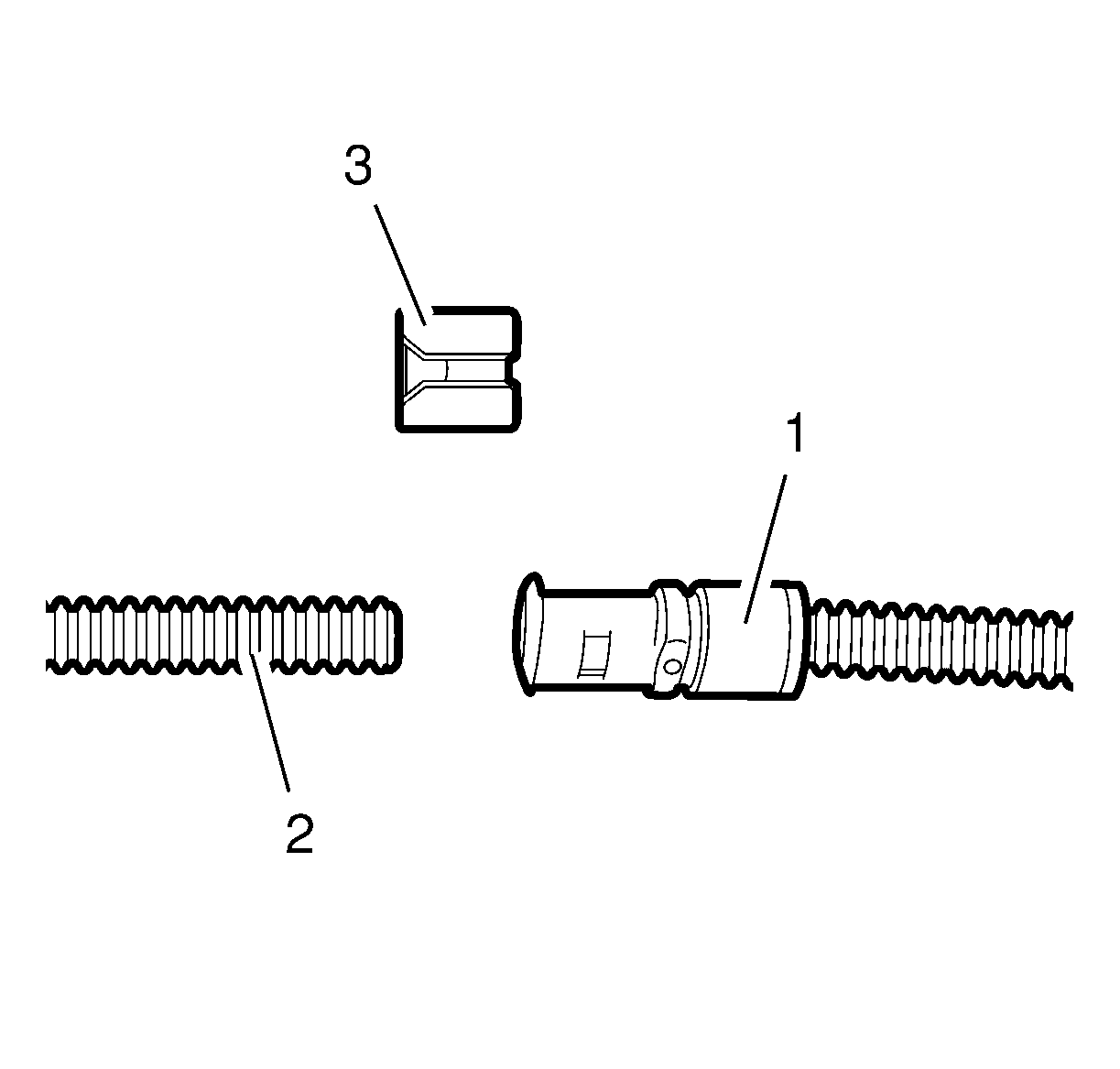

- Use the washer hose repair kit hose (1) to replace damaged section.
- Push the washer hose (2) from the body wiring harness into the washer hose repair kit hose (1).
- Secure the to two hoses with the retaining clamp (3). Confirm correct fit of retaining clamp (3) by a push/pull operation and a tactile and audible "click".
- Verify the repair by activating the front and rear washer system and check the system for leaks.
- If the repaired leak was located inside the main body wire harness or conduit, use electrical tape to retain the repaired section to the electrical wire harness conduit.
- If the repaired leak was located externally from the conduit, secure the hose with cable ties to prevent unnecessary movement and noise.
