Radio Replacement

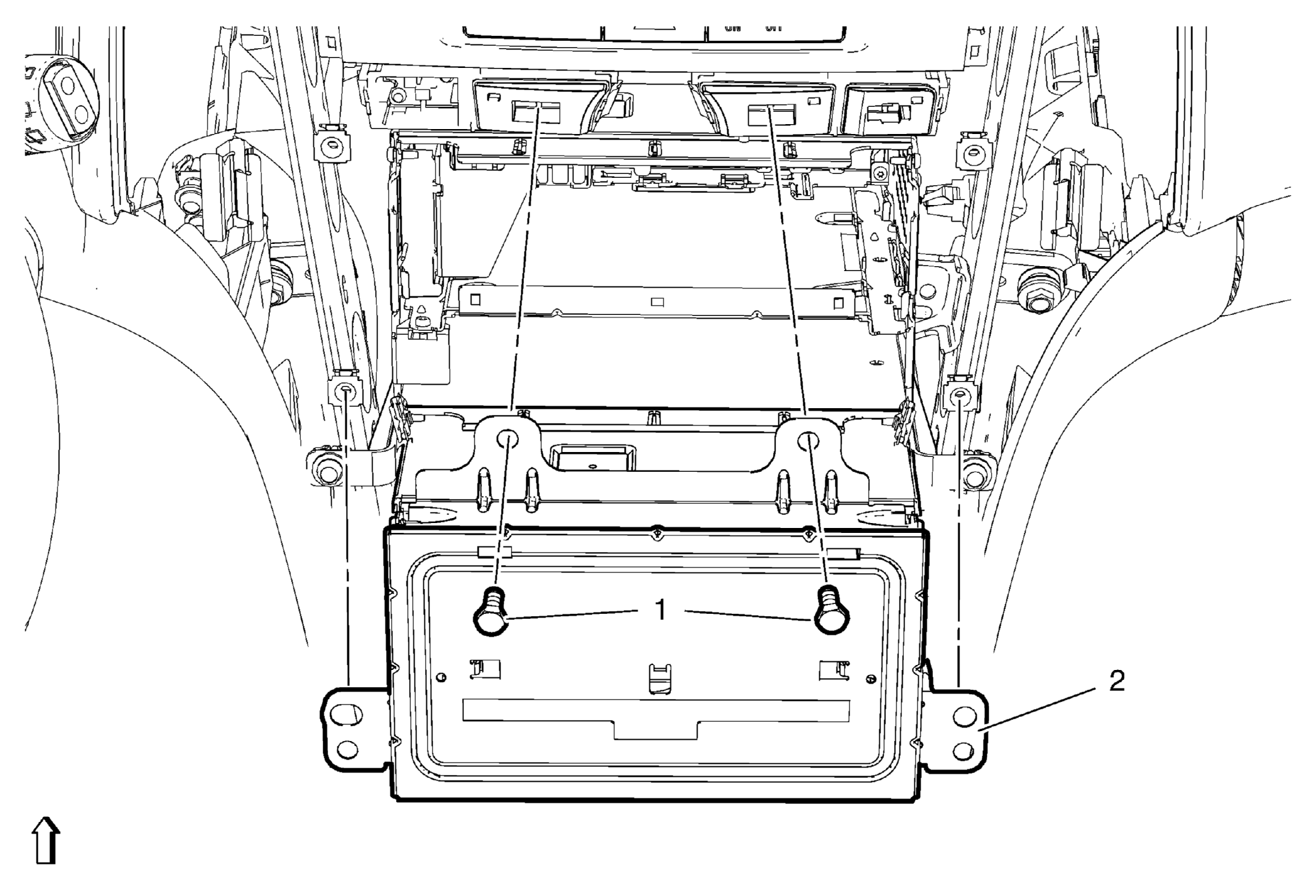

GM2189508

Callout

Component Name

Preliminary Procedures

Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection
Remove the radio control assembly. Refer to Radio Control Assembly Replacement .

1

Radio Bolt (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

2

Radio

Procedure

Disconnect electrical components.
After repairs, refer to Control Module References for programming and set up information.
