Left Front Wheel Well Components

Left Front Wheel Well Components

Items
1. B118B Windshield Washer Fluid Level Switch B118B Windshield Washer Fluid Level Switch
2. G24 Windshield Washer Pump G24 Windshield Washer Pump

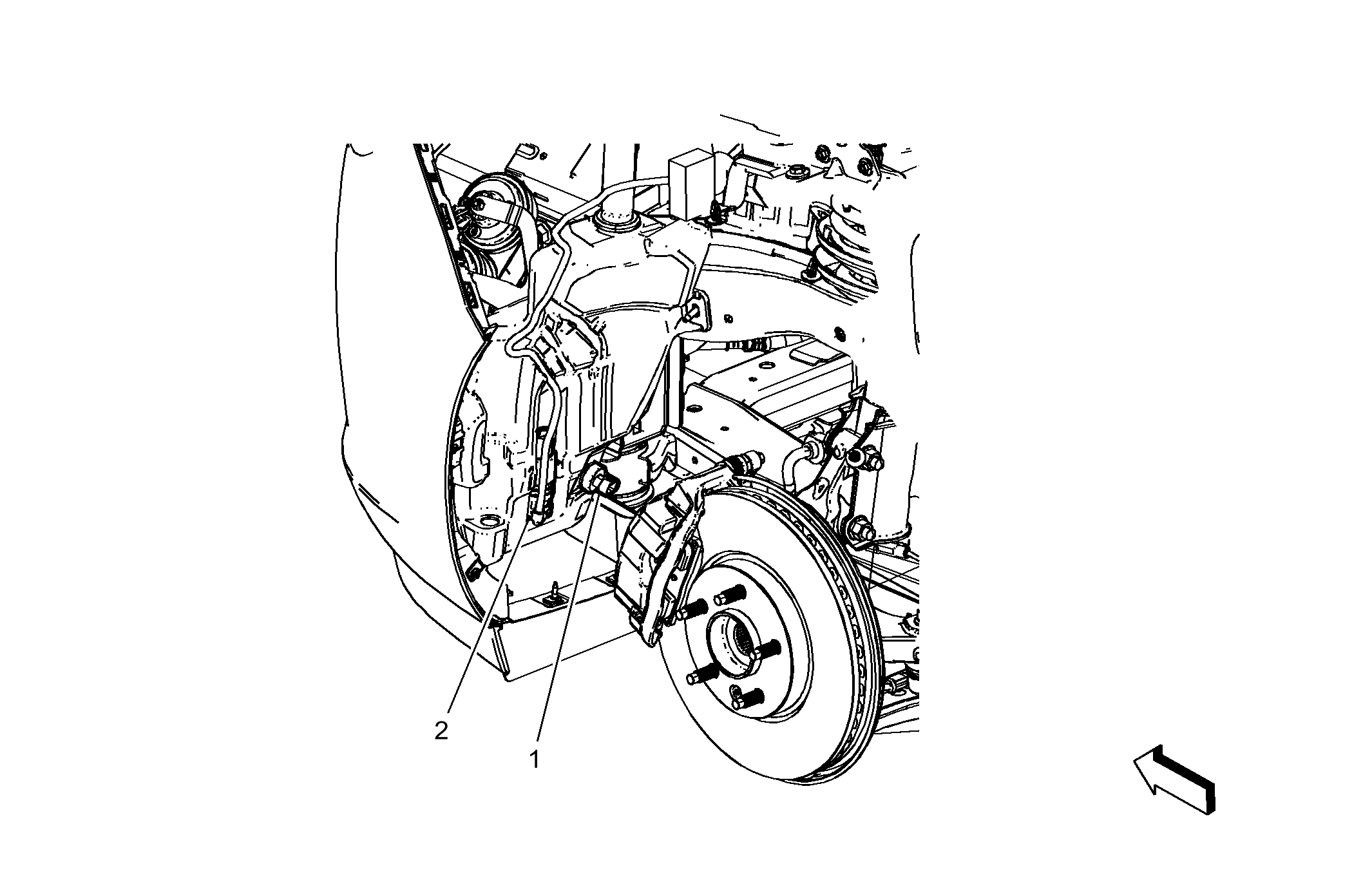

Fig 1: Left Front Wheel Well Components
GM4540706Courtesy of GENERAL MOTORS COMPANY
