Moveable Window Wiring Schematics: Driver

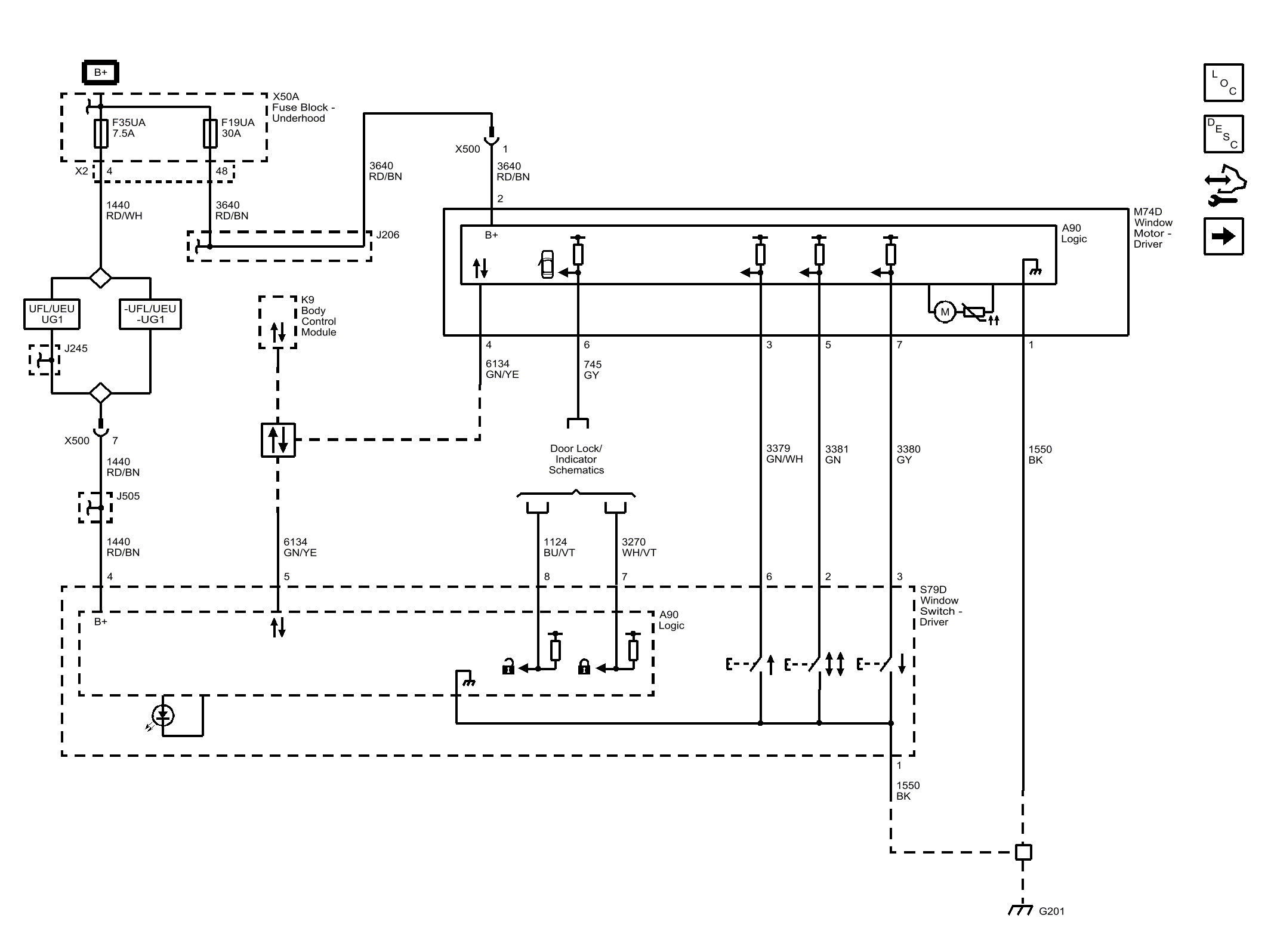

Fig 1: Driver

GM4499250

Courtesy of GENERAL MOTORS COMPANY
