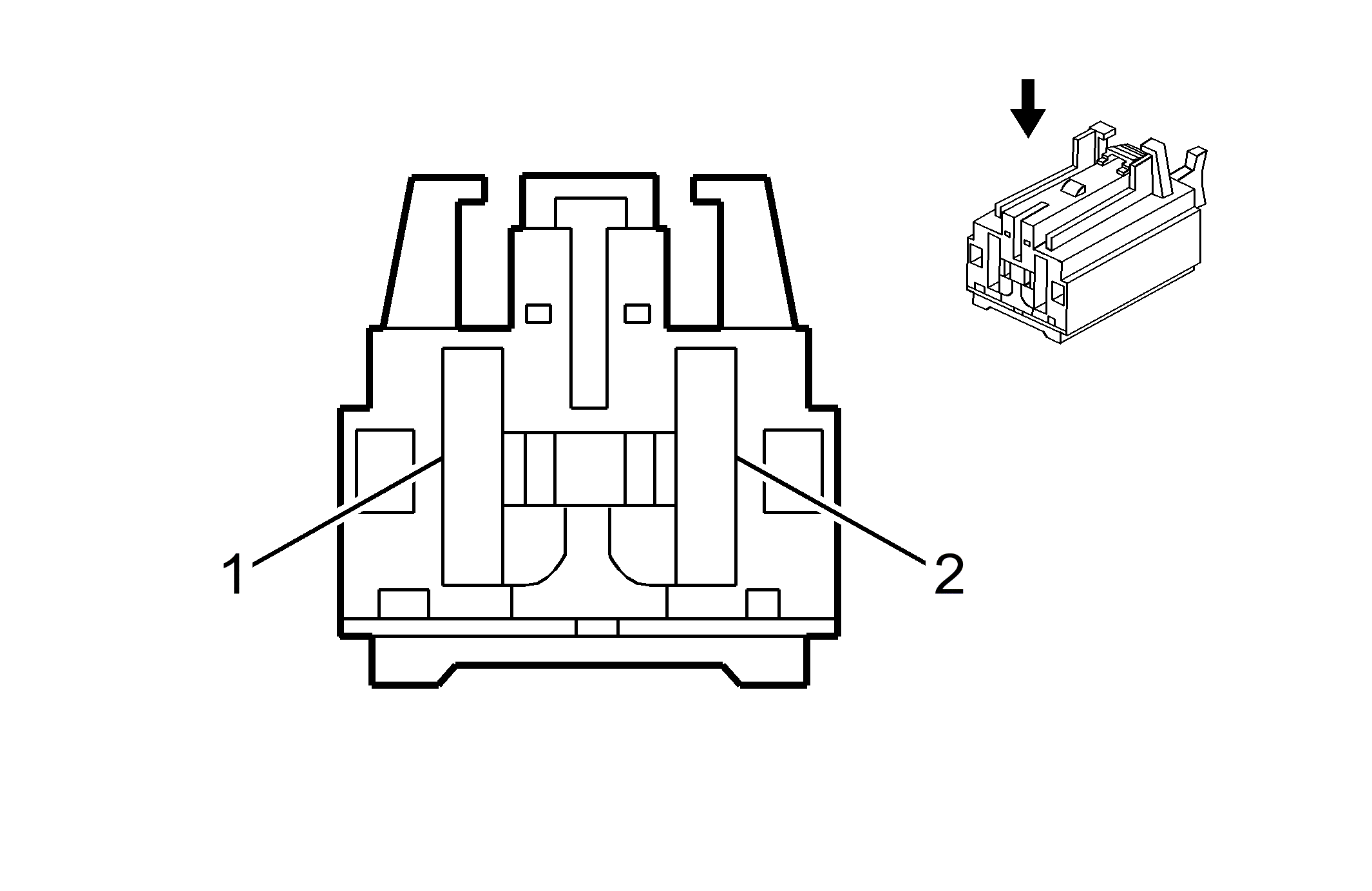

X53A Fuse Block - Rear Body X4
|
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 1563255-1
- Service Connector: 13407095
- Description: 2-Way F 9.5 Timer Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-42 (RD) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
4 |
RD/VT |
102 |
Battery Positive Voltage |
I |
UD7/UFT |
| 2 |
10 |
RD/VT |
102 |
Battery Positive Voltage |
I |
KA1/UVD/ATH/BTM/CF5/UVC/UQA |
