X51A Fuse Block - Instrument Panel Top View Fuses

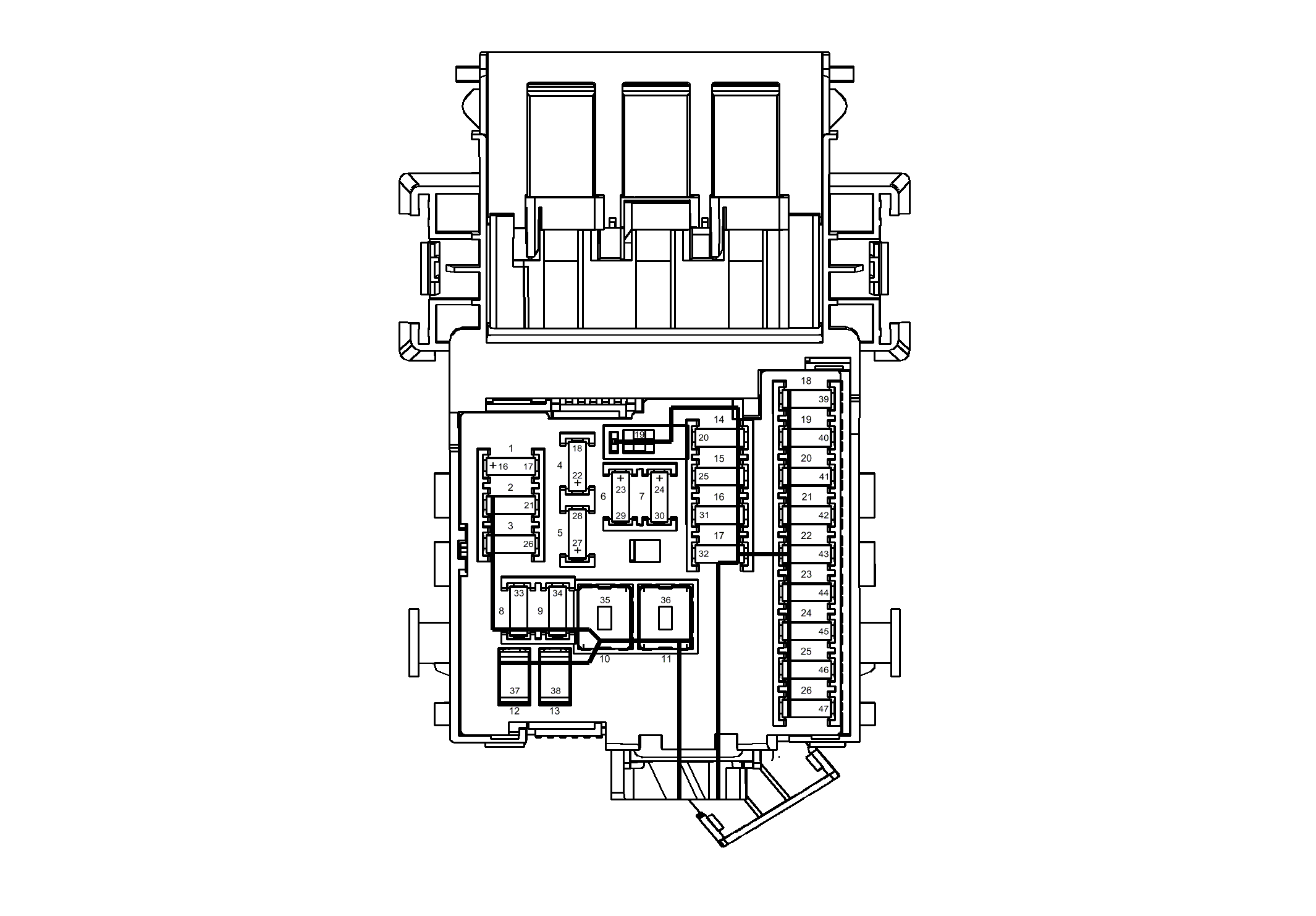

Fig 1: X51A Fuse Block - Instrument Panel Top View Fuses

Courtesy of GENERAL MOTORS COMPANY

X51A FUSE BLOCK - INSTRUMENT PANEL FUSE IDENTIFICATION LEGEND

No.	Device Label Name	Device Assigned Name	Rating	Description
1	-	F1DA	2A	S70L Steering Wheel Controls Switch - Left S70R Steering Wheel Controls Switch - Right
2	-	F2DA	20A	K9 Body Control Module
3	-	F3DA	20A	K9 Body Control Module
4	-	F4DA	20A	A11 Radio
5	-	F5DA	10A	A22 Radio Controls (UAG) K73 Telematics Communication Interface Control Module (UE1) P17 Info Display Module T11 Multimedia Player Interface Module X83 Auxiliary Audio Input
6	-	F6DA	20A	E32 Cigarette Lighter Receptacle
7	-	F7DA	20A	X80H Accessory Power Receptacle - Center Console
8	-	F8DA	30A	K9 Body Control Module
9	-	F9DA	30A	K9 Body Control Module
10	-	F10DA	30A	K9 Body Control Module
11	-	F11DA	40A	K8 Blower Motor Control Module
12	-	F12DA	25A	S64D Seat Adjuster Switch - Driver (ADS)
13	-	F13DA	-	Not Used
14	-	F14DA	7.5A	X84 Data Link Connector
15	-	F15DA	10A	K36 Inflatable Restraint Sensing and Diagnostic Module
16	-	F16DA	10A	KR95B Rear Compartment Lid Unlatch Relay
17	-	F17DA	10A	A26 HVAC Controls K33 HVAC Control Module
18	-	F18DA	30A	F4DA F5DA
19	-	F19DA	30A	K9 Body Control Module
20	-	F20DA	5A	K85 Passenger Presence Module
21	-	F21DA	7.5A	P16 Instrument Cluster
22	-	F22DA	5A (BTM) 2A (without BTM)	K84 Keyless Entry Control Module (BTM) S39 Ignition Switch (without BTM)
23	-	F23DA	20A	K9 Body Control Module
24	-	F24DA	20A	K9 Body Control Module
25	-	F25DA	-	Not Used
26	-	F26DA	-	Not Used
