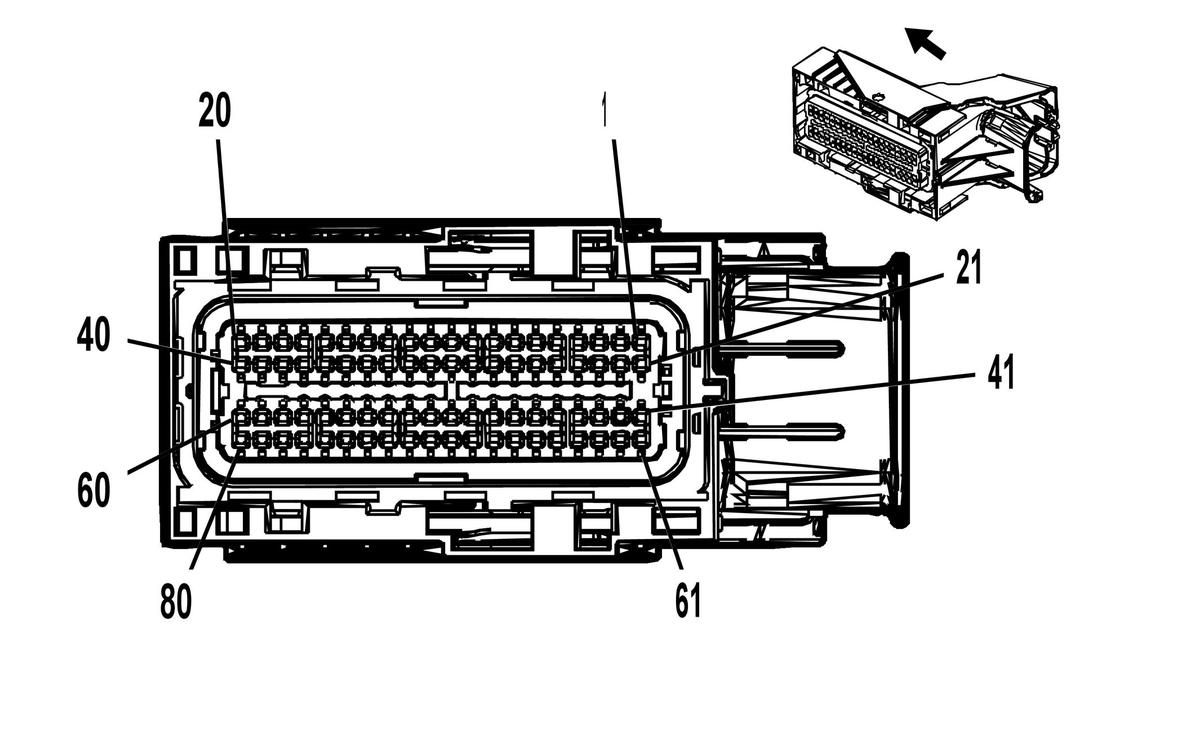

K20 Engine Control Module X1

GM3604216
Connector Part Information
  • Harness Type: Engine
  • OEM Connector: 34566-5363
  • Service Connector: 19355755
  • Description: 80-Way F 0.64 Series, Sealed (BK with GY Terminal Position Assurance)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool
I 13576392 J-35616-4A (PU) J-38125-11A
II 19330179 J-35616-64B (LT BU) J-38125-12A
Pin Size Color Circuit Function Terminal Type ID Option
1 - 3 - - - Not Occupied - -
4 0.5 YE/WH 3200 Throttle Inlet Absolute Pressure Sensor Signal II -
5 0.5 WH/RD 3201 Throttle Inlet Absolute Pressure Sensor 5V Reference II -
6 0.5 GN 380 A/C Refrigerant Pressure Sensor Signal II -
7 - 8 - - - Not Occupied - -
9 0.5 BU/WH 890 Fuel Tank Pressure Sensor Signal II -
10 0.5 YE/RD 2709 Fuel Tank Pressure Sensor 5V Reference II -
11 - 13 - - - Not Occupied - -
14 0.5 WH/RD 1164 Accelerator Pedal Position 5V Reference 1 II -
15 0.5 YE/WH 1161 Accelerator Pedal Position Signal 1 II -
16 - 20 - - - Not Occupied - -
21 0.5 BN/RD 2700 A/C Pressure Sensor 5V Reference II -
22 0.5 BK/BN 5514 A/C Refrigerant Pressure Sensor Low Reference II -
23 - 24 - - - Not Occupied - -
25 0.5 BU/VT 1589 Primary Fuel Level Sensor Signal II -
26 0.5 BK/GN 6281 Fuel Level Sensor Low Reference II -
27 - 29 - - - Not Occupied - -
30 0.5 BK/BU 1271 Accelerator Pedal Position Low Reference 1 II -
31 - - - Not Occupied - -
32 0.5 WH/GY 459 A/C Compressor Clutch Relay Control II -
33 0.5 BN/RD 1274 Accelerator Pedal Position 5V Reference 2 II -
34 0.5 GN/WH 1162 Accelerator Pedal Position Signal 2 II -
35 - 37 - - - Not Occupied - -
38 0.5 WH 1579 Fuel Temperature/Composition Signal II -
39 0.5 BU 2500 High Speed GMLAN Serial Data (+) 1 II -
40 0.5 WH 2501 High Speed GMLAN Serial Data (-) 1 II -
41 - - - Not Occupied - -
42 0.5 BN/YE 473 High Speed Cooling Fan Relay Control II -
43 - - - Not Occupied - -
44 0.5 GN/GY 465 Fuel Pump Primary Relay Control II -
45 - - - Not Occupied - -
46 0.5 BN/WH 419 Check Engine Indicator Control II -
47 0.5 RD 5359 Brake Apply Sensor Control II -
48 0.5 YE 5361 Brake Apply Sensor Signal II -
49 - 50 - - - Not Occupied - -
51 0.75 VT/BK 3 Run/Crank Ignition 1 Voltage II -
52 0.75 VT/BK 3 Run/Crank Ignition 1 Voltage II -
53 0.5 BK/VT 1272 Accelerator Pedal Position Low Reference 2 II -
54 - 56 - - - Not Occupied - -
57 0.5 WH/BU 6311 Cruise/ETC/TCC Brake Signal II -
58 - - - Not Occupied - -
59 0.5 GN/VT 335 Low Speed Cooling Fan Relay Control II -
60 - 61 - - - Not Occupied - -
62 0.75 VT/BU 5291 Powertrain Main Relay Fused Supply 2 II -
63 0.5 YE 447 Starter Relay Coil Control II -
64 - 65 - - - Not Occupied - -
66 0.75 WH 1310 EVAP Canister Vent Solenoid Control II -
67 - - - Not Occupied - -
68 0.5 GY 5360 Brake Apply Sensor Low Reference II -
69 - - - Not Occupied - -
70 0.5 VT/YE 5985 Accessory Wakeup Serial Data II -
71 - - - Not Occupied - -
72 0.5 BN/WH 5069 Engine Main Relay Coil Control II -
73 1.5 VT/BU 5290 Powertrain Main Relay Fused Supply 1 I -
74 - 80 - - - Not Occupied - -
