Passive Entry and Passive Start Antennas (ATH with BTM)

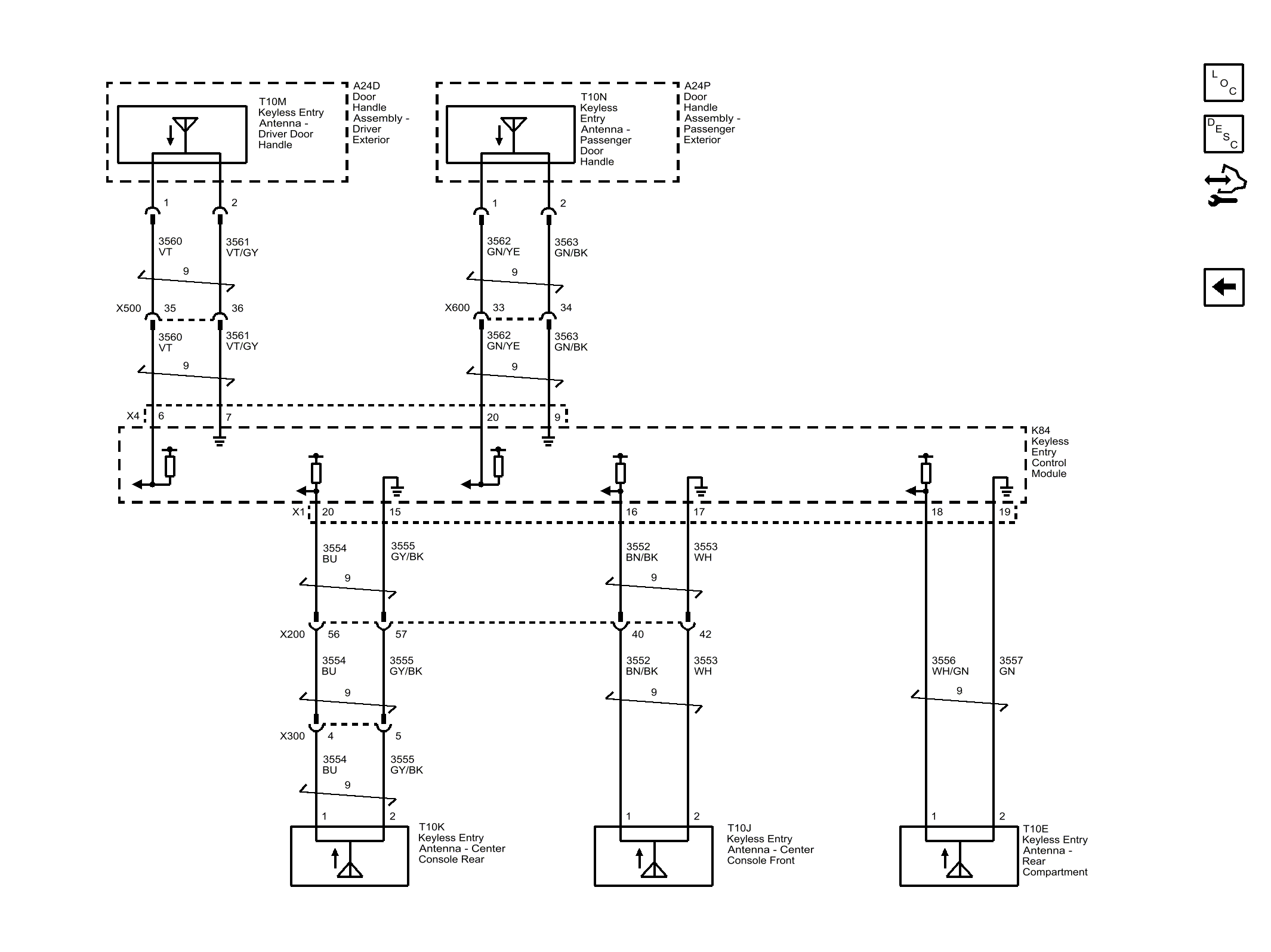

Fig 1: Passive Entry and Passive Start Antennas (ATH with BTM)

GM4502862

Courtesy of GENERAL MOTORS COMPANY
