Powertrain High Speed GMLAN (LEA/LTG/LAF/LDK)
Powertrain High Speed GMLAN (LEA/LTG/LAF/LDK)

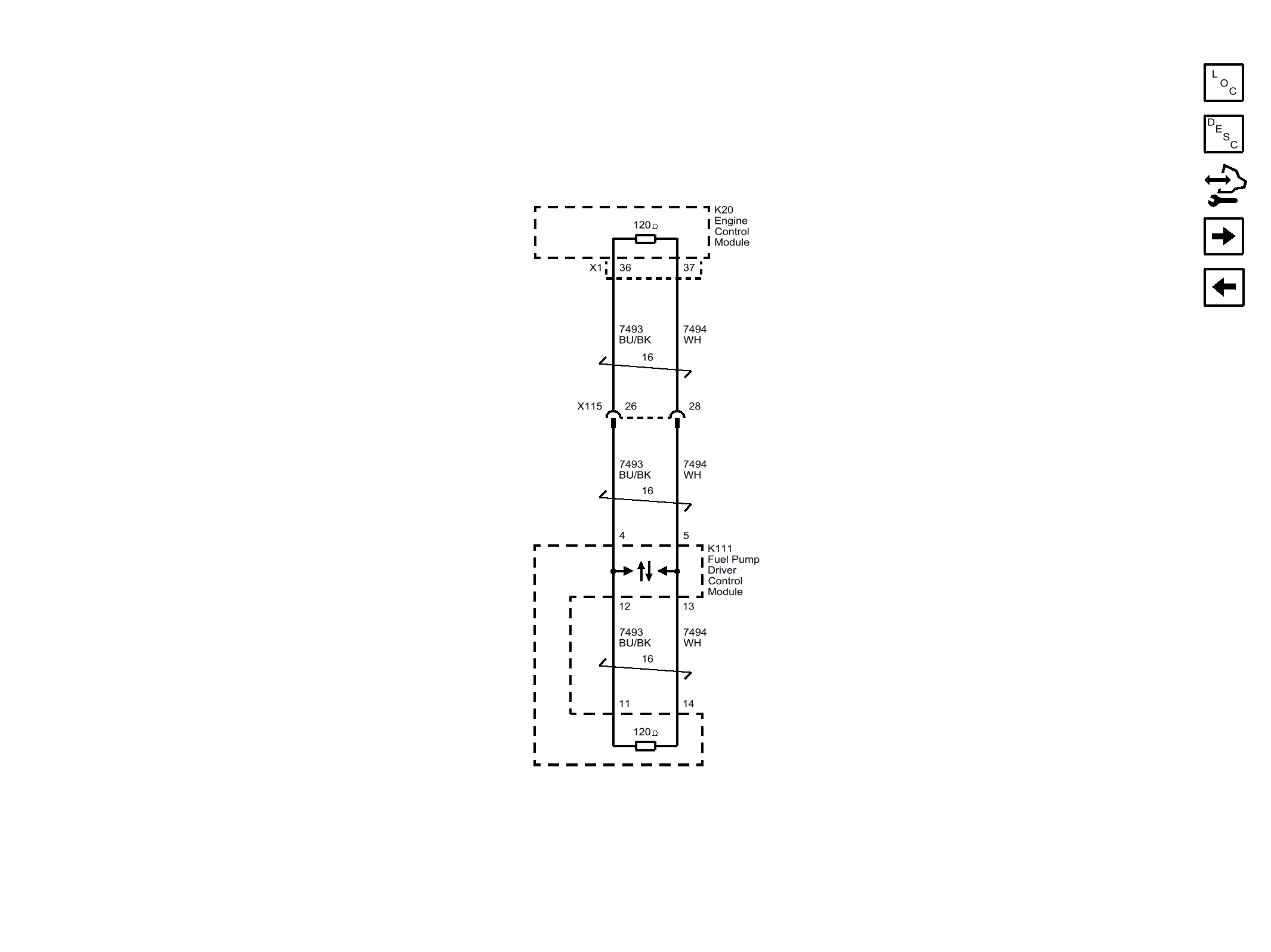

Fig 1: Powertrain High Speed GMLAN (LEA/LTG/LAF/LDK)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
