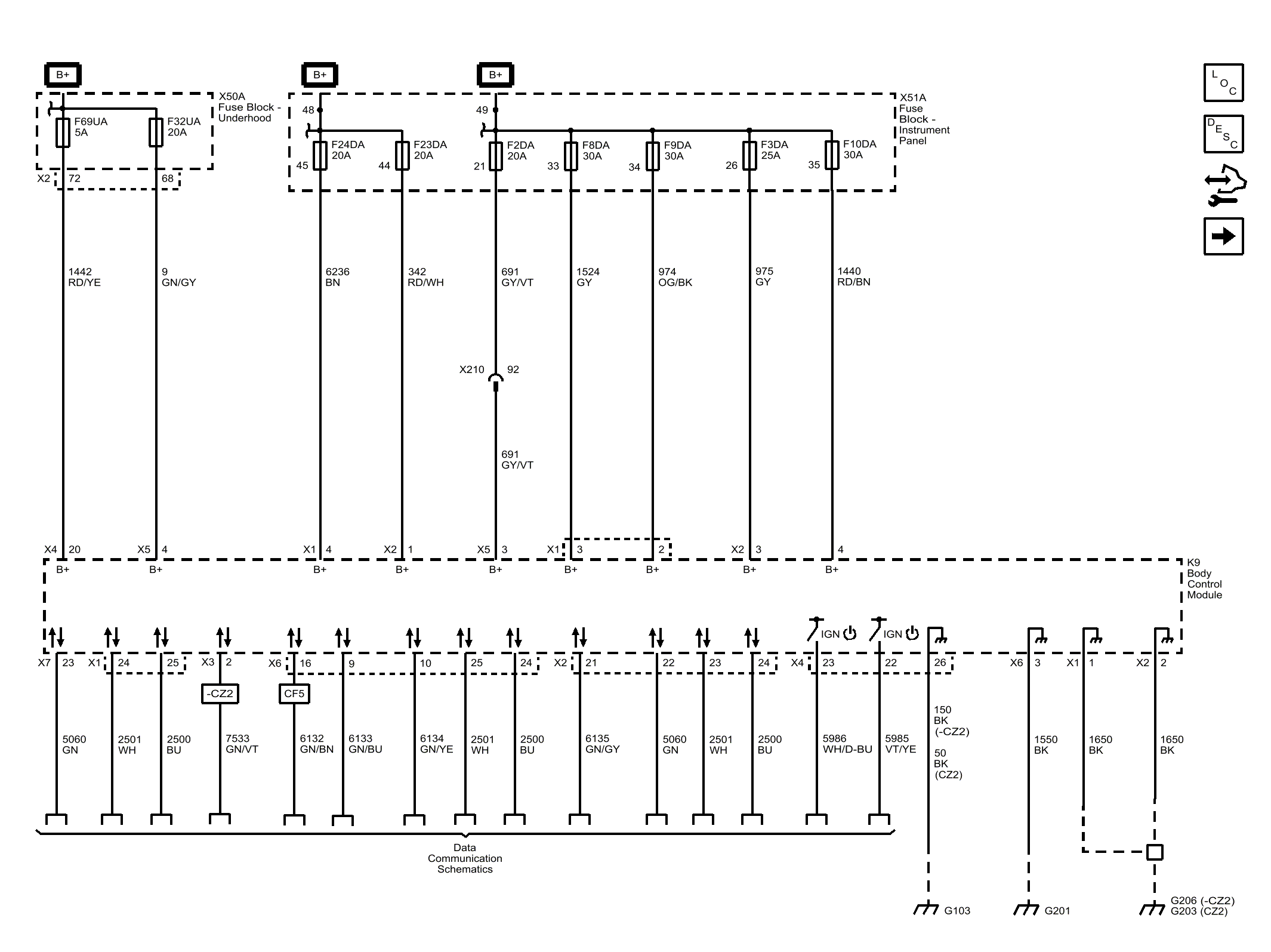

Home >> Buick >> 2017 >> Regal Premium, FWD >> Repair and Diagnosis >> Engine Performance >> System >> Data Communication System >> Schematic Wiring Diagrams >> Body Control System Wiring Schematics >> Power, Ground, and Serial Data
