Remote Control Door Lock Receiver Replacement (With UFL)

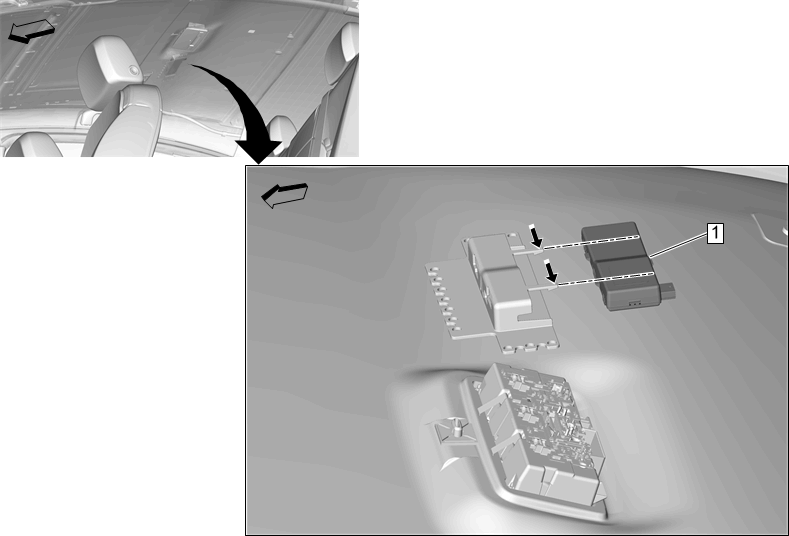

Fig 1: Remote Control Door Lock Receiver (With UFL)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure It is only necessary to lower the headlining. Only do those steps in the headlining procedure that will allow access to the component being removed. Refer to Headlining Trim Panel Replacement (With Sunroof)Headlining Trim Panel Replacement (Without Sunroof)
1	Remote Control Door Lock Receiver Procedure Disconnect the electrical connector. Release the retaining tabs.

Callout

Component Name

Preliminary Procedure
It is only necessary to lower the headlining. Only do those steps in the headlining procedure that will allow access to the component being removed. Refer to Headlining Trim Panel Replacement (With Sunroof)Headlining Trim Panel Replacement (Without Sunroof)

Remote Control Door Lock Receiver

Procedure
