Radio Control Switch Replacement (Except Grand Sport)

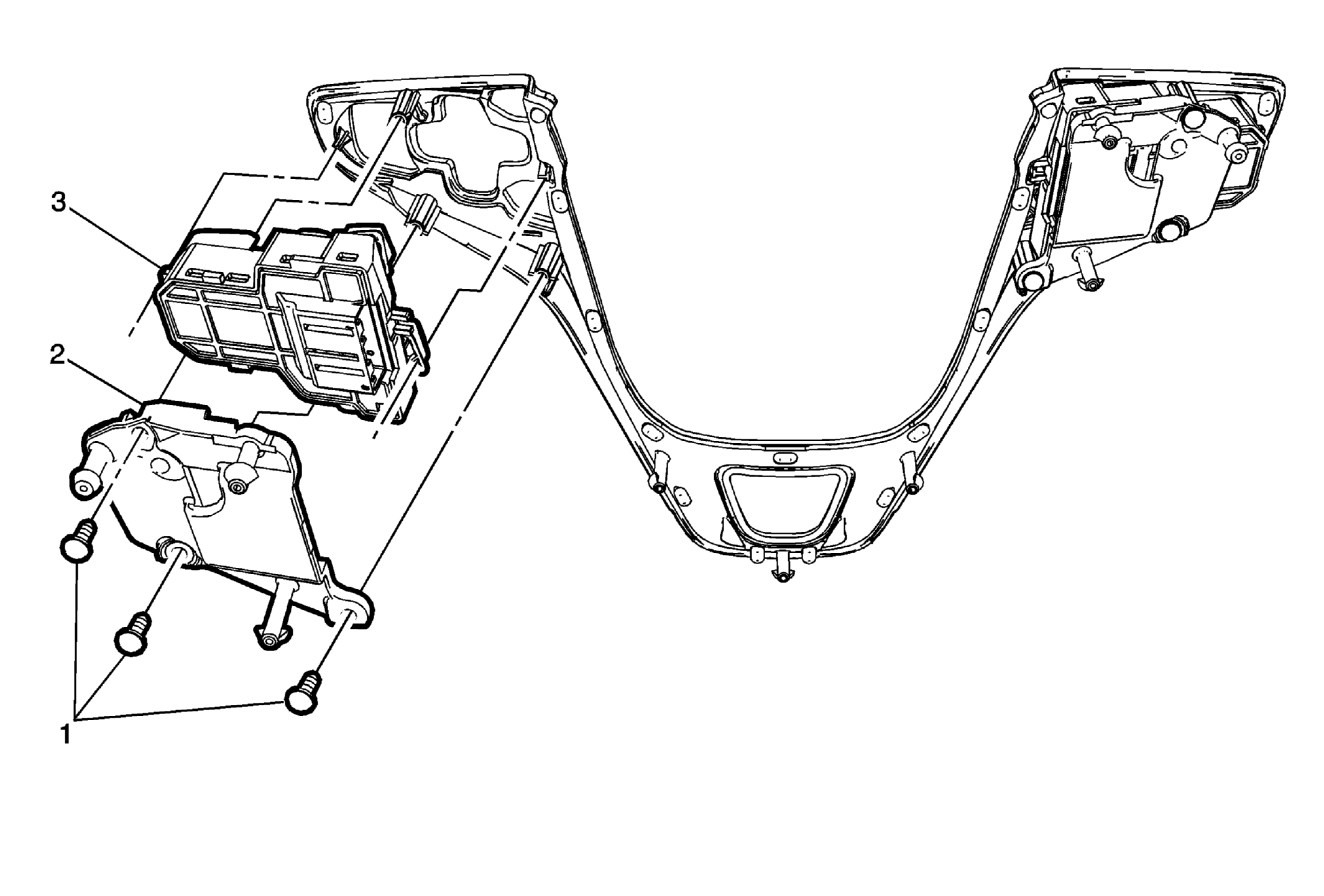

Fig 1: Radio Control Switch (Except Grand Sport)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the steering wheel spoke lower cover. Refer to Steering Wheel Spoke Lower Cover Replacement (Except Grand Sport) .
1	Steering Wheel Spoke Lower Cover Fasteners (Qty: 3) CAUTION: Refer to Fastener Caution .
2	Steering Wheel Spoke Lower Cover Bracket
3	Radio Control Switch
