Power, Ground, On/Off Switch, and Rear Sensors (UD5/UD7 except CZ2)

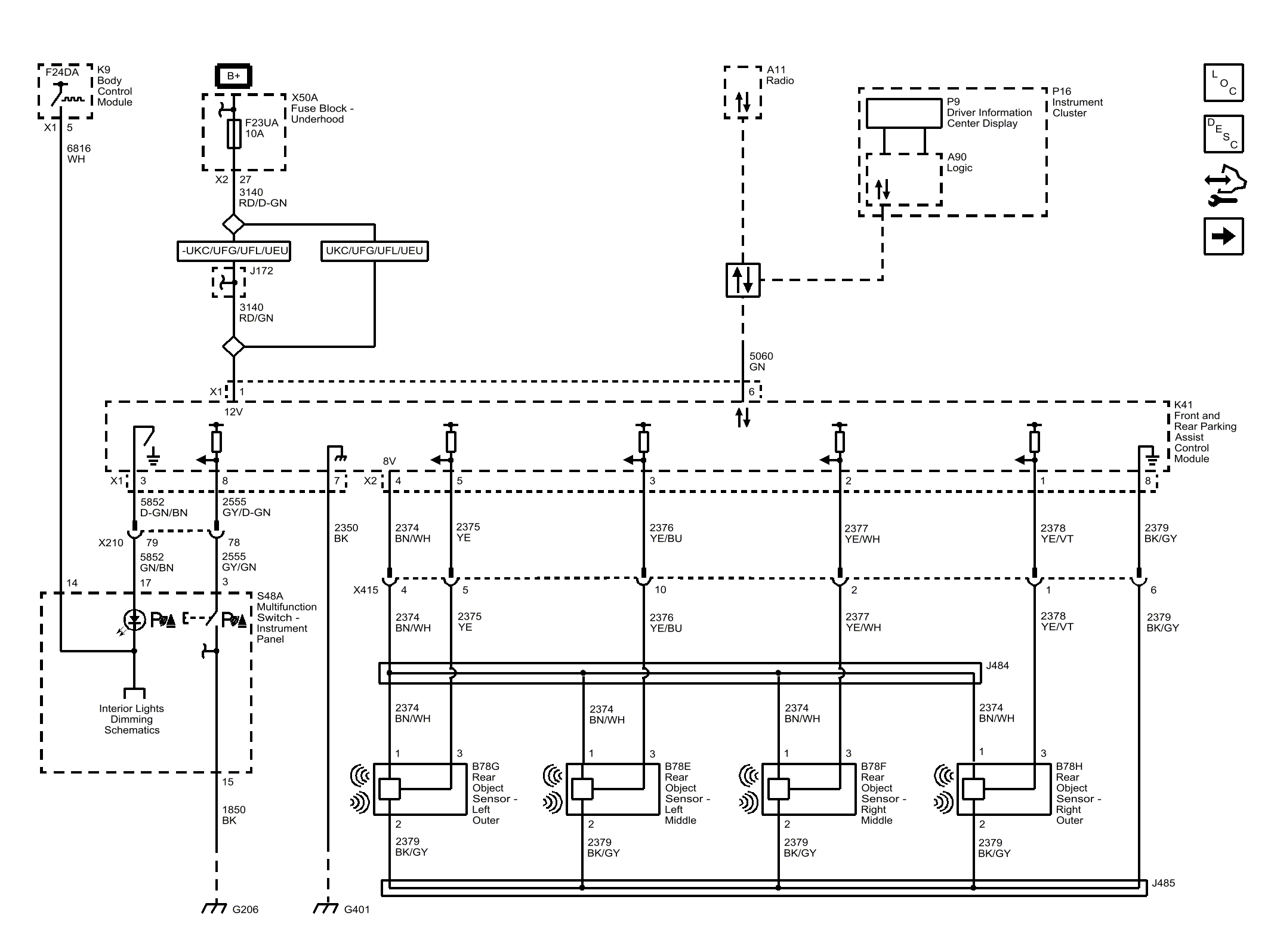

Fig 1: Power, Ground, On/Off Switch, and Rear Sensors (UD5/UD7 except CZ2)

GM4423566

Courtesy of GENERAL MOTORS COMPANY
