Rearview Driver Information Camera Replacement

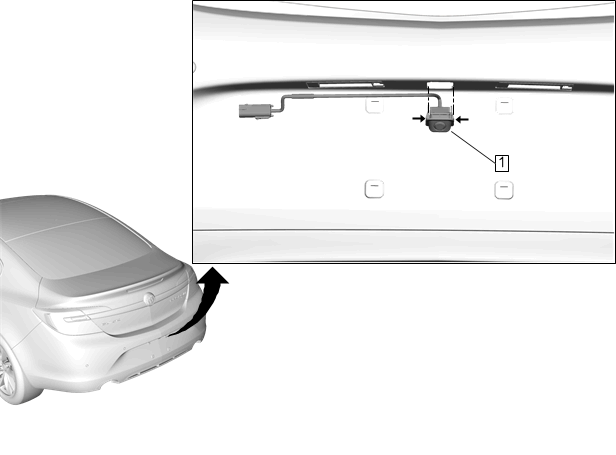

Fig 1: Rearview Driver Information Camera
GM4251252Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement
1 Rearview Driver Information Camera

Procedure

  1. Disconnect the electrical connector.
  2. Using a flat-bladed tool, depress the tabs and pull the rearview camera down from the rear fascia.
