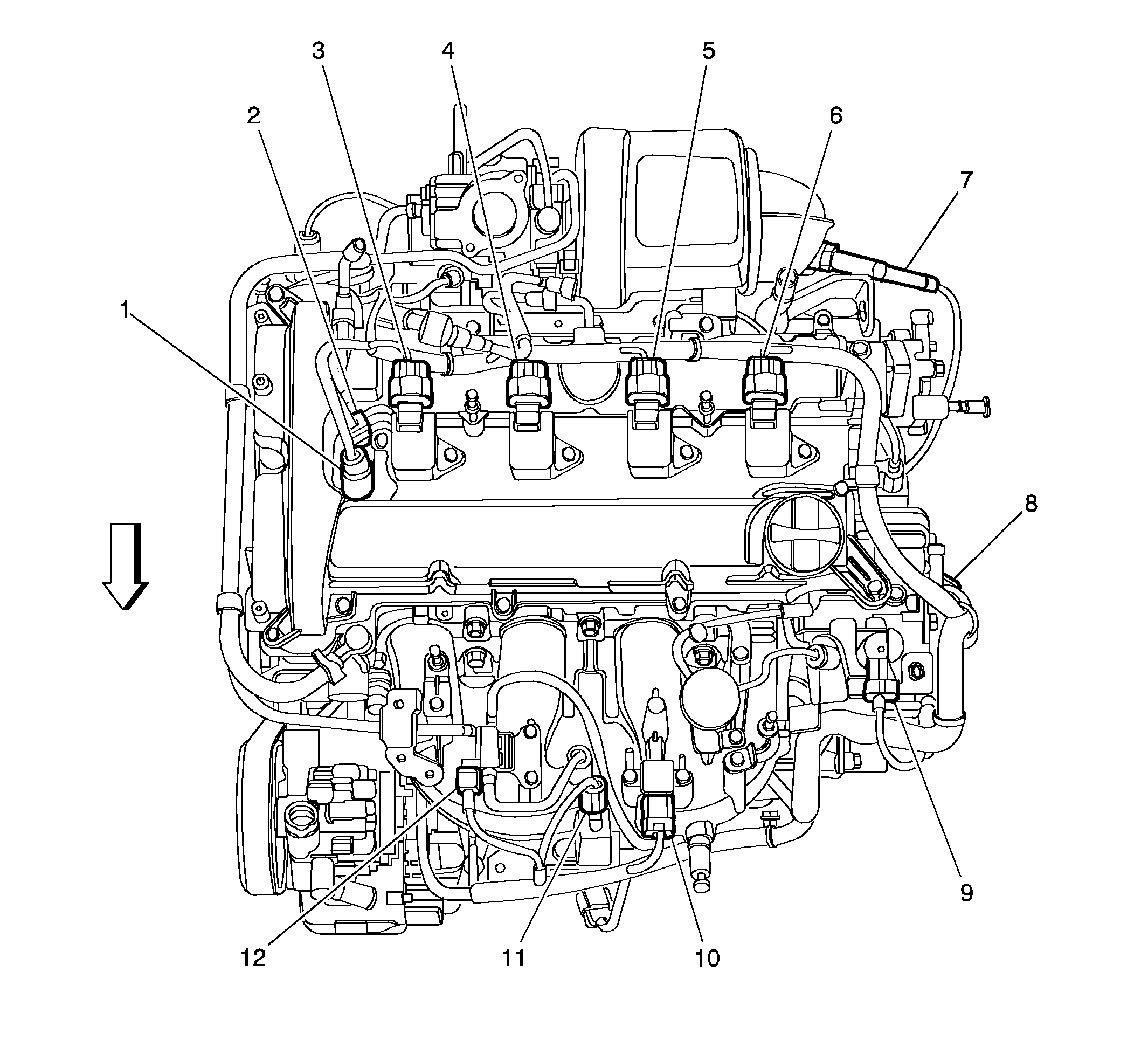

Engine Components - Top (LDK)
Engine Components - Top (LDK)
| Items |
|---|
| 1: Q6F Camshaft Position Actuator Solenoid Valve - Intake Q6F Camshaft Position Actuator Solenoid Valve - Intake (LDK) |
| 2: Q6E Camshaft Position Actuator Solenoid Valve - Exhaust Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LDK) |
| 3: T8A Ignition Coil 1 T8A Ignition Coil 1 (LDK) |
| 4: T8B Ignition Coil 2 (except LTG, LEA or LLU) T8B Ignition Coil 2 (LDK) |
| 5: T8C Ignition Coil 3 (except LTG, LEA or LLU) T8C Ignition Coil 3 (LDK) |
| 6: T8D Ignition Coil 4 (except LTG or LEA) T8D Ignition Coil 4 (LDK) |
| 7: B47 Fuel Pressure Sensor B47 Fuel Pressure Sensor |
| 8: B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor (LDK) |
| 9: Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve (LDK) |
| 10: Q40 Turbocharger Bypass Solenoid Valve (LDK, LTG or LLU) Q40 Turbocharger Bypass Solenoid Valve (LDK) |
| 11: B68B Knock Sensor 2 (LDK or LTG) B68B Knock Sensor 2 (LDK) |
| 12: B68A Knock Sensor 1 (LDK or LTG) B68A Knock Sensor 1 (LDK) |
