Fuel Pump Power Control Module Replacement

WARNING: This page is about a different variant/trim than selected.

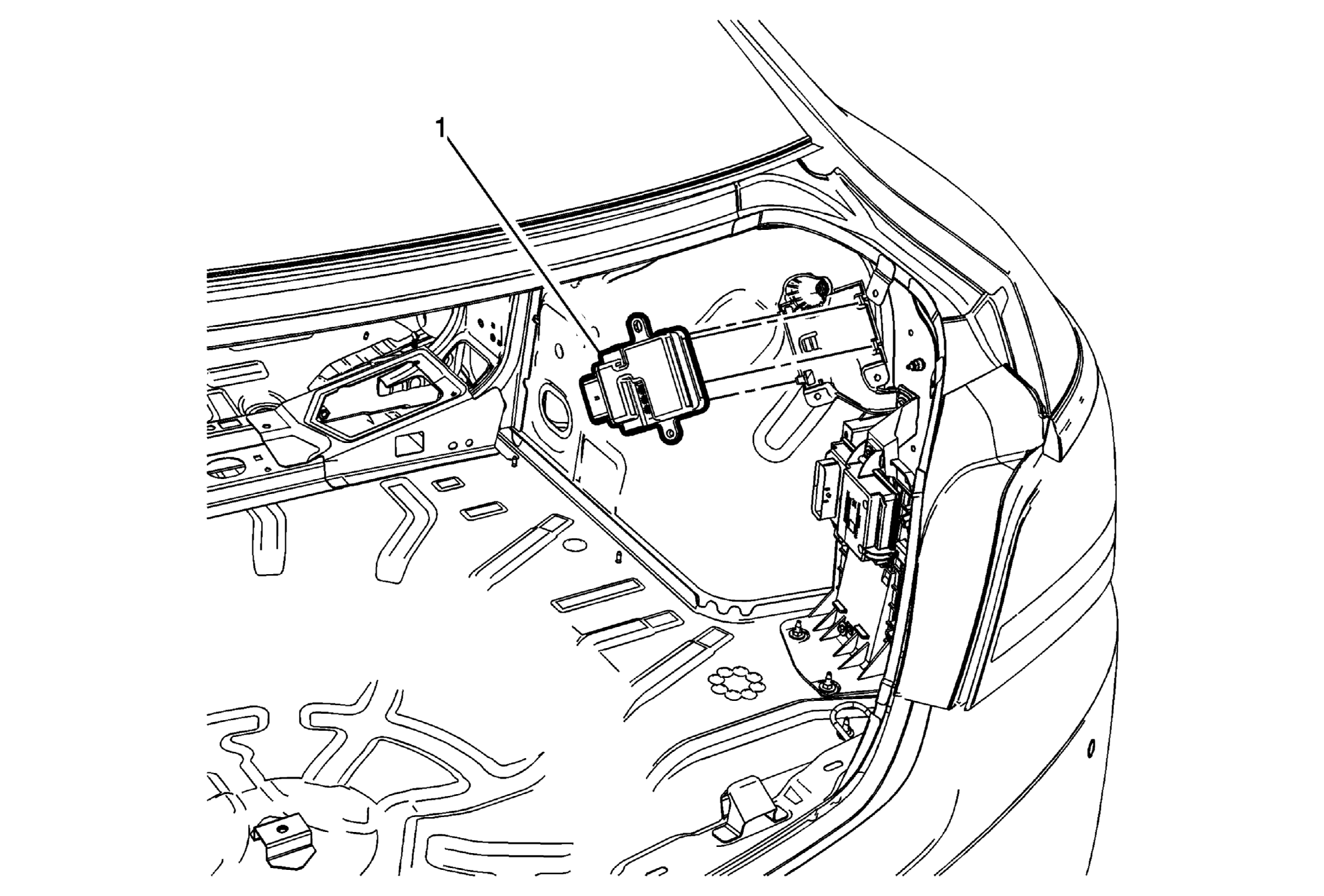

Fig 1: Fuel Pump Power Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the passenger rear compartment side trim panel. Refer to Rear Compartment Side Trim Panel Replacement (HP6, Right Side)Rear Compartment Side Trim Panel Replacement (without HP6) .
1	Fuel Pump Power Control Module Procedure Disconnect the electrical connector. Release the retaining tabs.

Callout

Component Name

Fuel Pump Power Control Module

Procedure
