Front Seat Belt Guide Adjuster Replacement

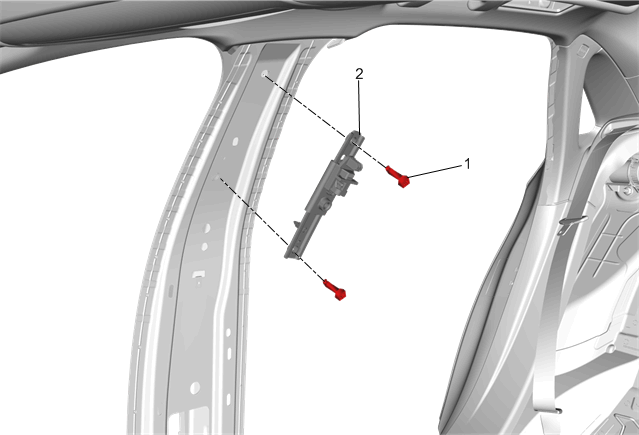

Fig 1: Front Seat Belt Guide Adjuster

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Center Pillar Upper Trim Panel Replacement Disconnect the seat belt. Front Seat Belt Retractor Replacement
1	Front Seat Belt Guide Adjuster Bolt CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Front Seat Belt Guide Adjuster Procedure Release the retainer.

Callout

Component Name

Preliminary Procedures

Front Seat Belt Guide Adjuster Bolt

CAUTION:

Tighten
45 N.m (33 lb ft)

Front Seat Belt Guide Adjuster
Procedure
Release the retainer.
