Right Side of the Engine Components (LKN)

Right Side of the Engine Components (LKN)

Items
1. G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump (LKN)
2. Q6F Camshaft Position Actuator Solenoid Valve - Intake (LFV/LKN/LTG) Q6F Camshaft Position Actuator Solenoid Valve - Intake (CZ2+LKN)Q6F Camshaft Position Actuator Solenoid Valve - Intake (LKN)
3. Q38 Throttle Body Q38 Throttle Body (LKN)
4. B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor (LFV/LKN)B37B Engine Oil Pressure Sensor (LKN)
5. B68 Knock Sensor (LFV/LKN) B68 Knock Sensor (LFV/LKN)
6. Q44 Engine Oil Pressure Control Solenoid Valve Q44 Engine Oil Pressure Control Solenoid Valve (LKN)
7. B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (LFV/LKN)B26 Crankshaft Position Sensor (LKN)

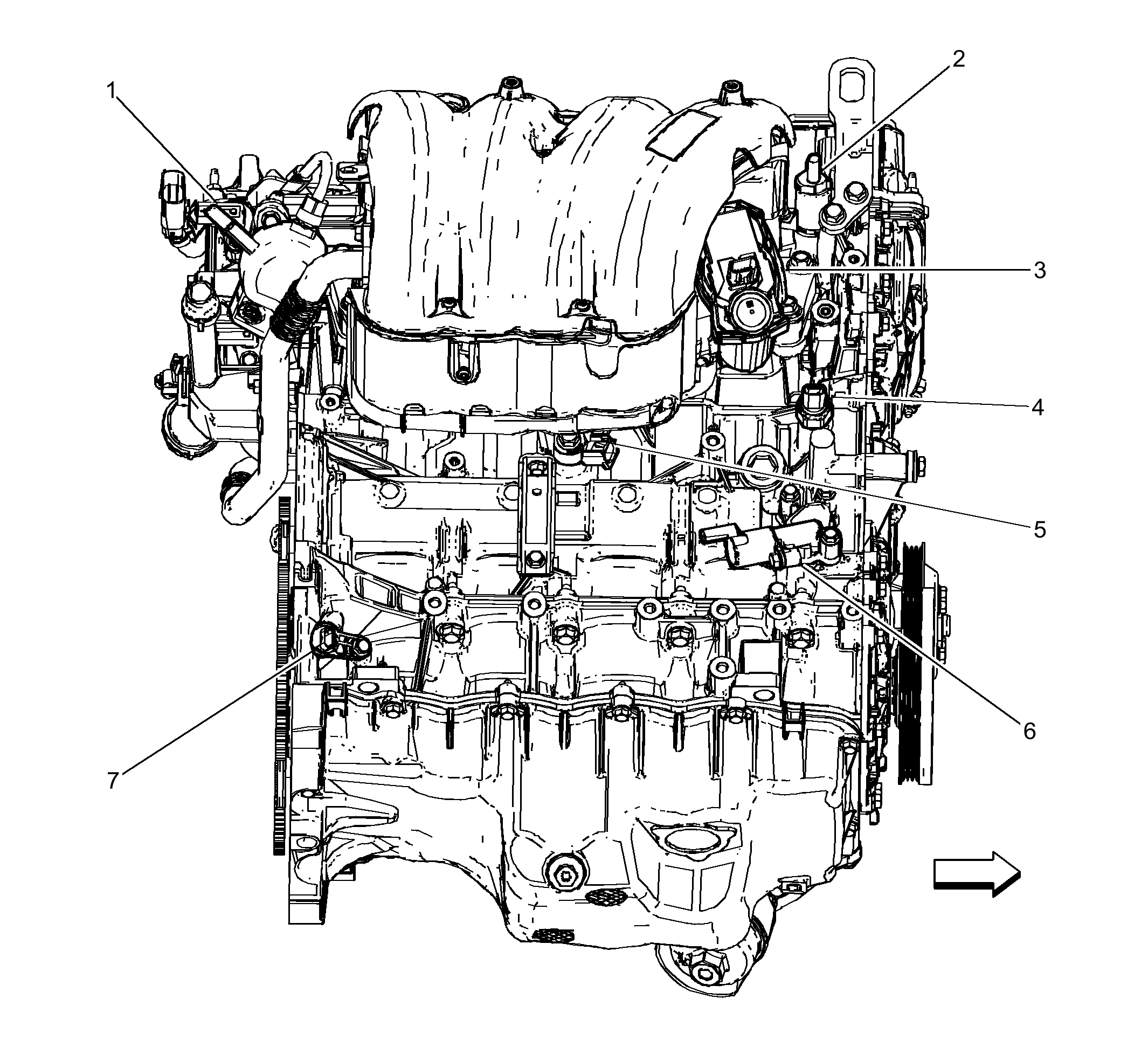

Fig 1: Right Side of the Engine Components (LKN)
GM4319025Courtesy of GENERAL MOTORS COMPANY
