Left Front of the Engine Components (LGX)

Left Front of the Engine Components (LGX)

Items
1. B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (LFV)B34 Engine Coolant Temperature Sensor (LTG/LKN)
2. Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust (LGX) Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust (LGX)
3. Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake (LGX) Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake (LGX)
4. B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor (LGX)
5. Q6D Camshaft Position Actuator Solenoid Valve - Bank 2 Intake (LGX) Q6D Camshaft Position Actuator Solenoid Valve - Bank 2 Intake (LGX)
6. Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust (LGX) Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust (LGX)
7. B23D Camshaft Position Sensor - Bank 2 Intake (LGX) B23D Camshaft Position Sensor - Bank 2 Intake (LGX)
8. B75C Multifunction Intake Air Sensor B75C Multifunction Intake Air Sensor
9. T8F Ignition Coil 6 (LGX) T8F Ignition Coil 6 (LGX)
10. T8D Ignition Coil 4 T8D Ignition Coil 4 (LGX)
11. B52E Heated Oxygen Sensor - Bank 2 Sensor 1 (LGX) B52E Heated Oxygen Sensor - Bank 2 Sensor 1 (LGX)
12. Q83B Valve Lifter Oil Solenoid Valve - Bank 2 (LGX) Q83B Valve Lifter Oil Solenoid Valve - Bank 2 (LGX)
13. T8B Ignition Coil 2 T8B Ignition Coil 2 (LGX)
14. B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (LGX) B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (LGX)
15. Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve
16. Q2 A/C Compressor Clutch
17. G13 Generator G13 Generator X1 (LGX)G13 Generator X2 (LGX)
18. Q84B Camshaft Position Actuator Park Lock Solenoid Valve - Bank 2 Intake (LGX) Q84B Camshaft Position Actuator Park Lock Solenoid Valve - Bank 2 Intake (LGX)
19. Q84A Camshaft Position Actuator Park Lock Solenoid Valve - Bank 1 Intake (LGX) Q84A Camshaft Position Actuator Park Lock Solenoid Valve - Bank 1 Intake (LGX)

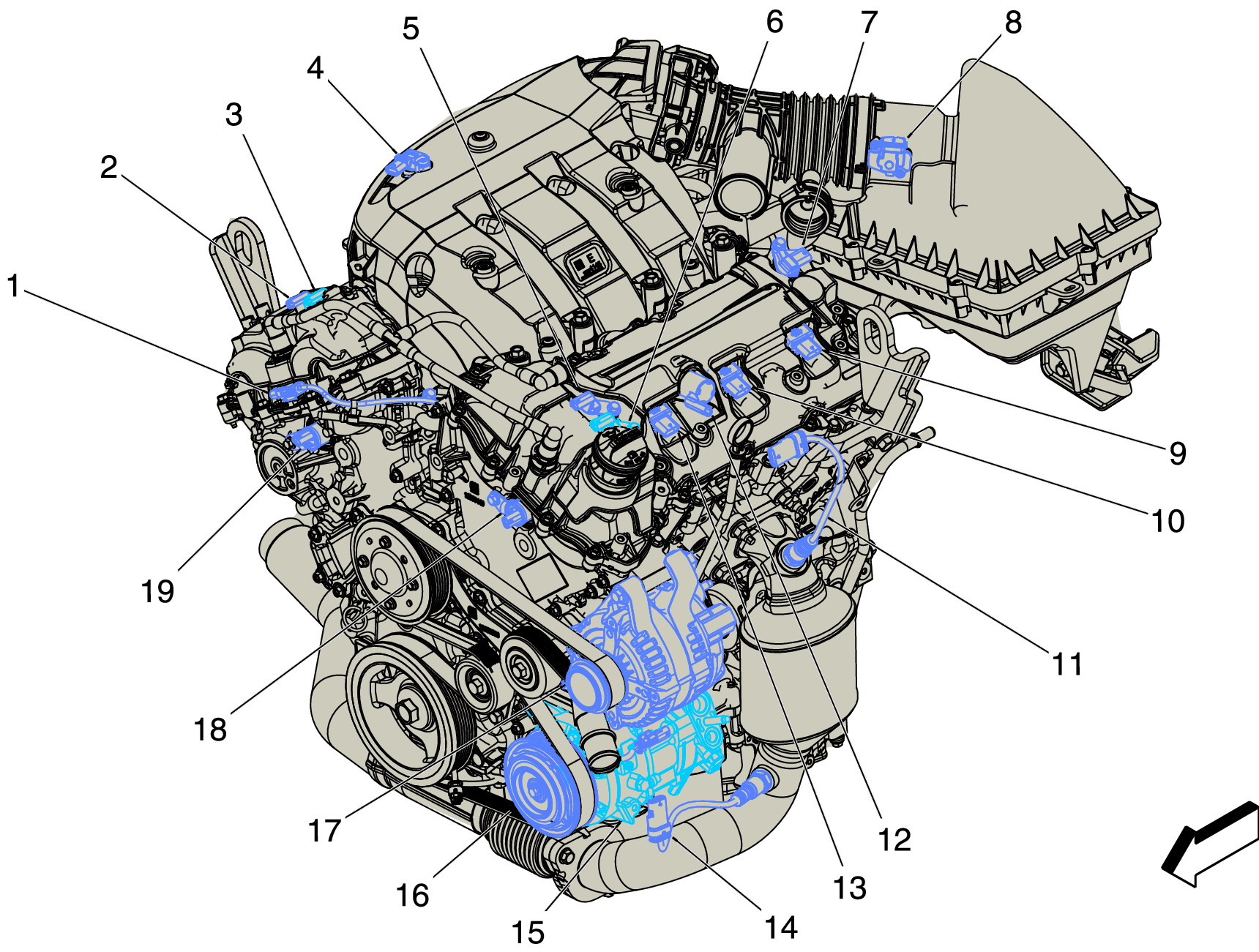

Fig 1: Left Front of the Engine Components (LGX)
GM4455139Courtesy of GENERAL MOTORS COMPANY
