Left Side of the Engine Compartment Components

Left Side of the Engine Compartment Components

Items
1. B108 Air Quality Sensor (UEC) B108 Air Quality Sensor (CZ2)B108 Air Quality Sensor (EF7/Z49)
2. M75 Windshield Wiper Motor M75 Windshield Wiper Motor
3. B19B Brake Booster Vacuum Sensor B19B Brake Booster Vacuum Sensor
4. X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1X50A Fuse Block - Underhood X2X50A Fuse Block - Underhood X3 (EF7/Z49)X50A Fuse Block - Underhood X3 (LFV)X50A Fuse Block - Underhood X3 (LGX)X50A Fuse Block - Underhood X3 (LKN)X50A Fuse Block - Underhood X3 (LTG)X50A Fuse Block - Underhood X4 (LFV)X50A Fuse Block - Underhood X4 (LGX)X50A Fuse Block - Underhood X4 (LKN)X50A Fuse Block - Underhood X4 (LTG)X50A Fuse Block - Underhood X5X50A Fuse Block - Underhood X6 (LFV)X50A Fuse Block - Underhood X6 (LGX)X50A Fuse Block - Underhood X8X50A Fuse Block - Underhood X9 (LKN)X50A Fuse Block - Underhood X9 (LTG)
5. B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch
6. K17 Electronic Brake Control Module K17 Electronic Brake Control Module
7. P12R Horn - Right P12R Horn - Right

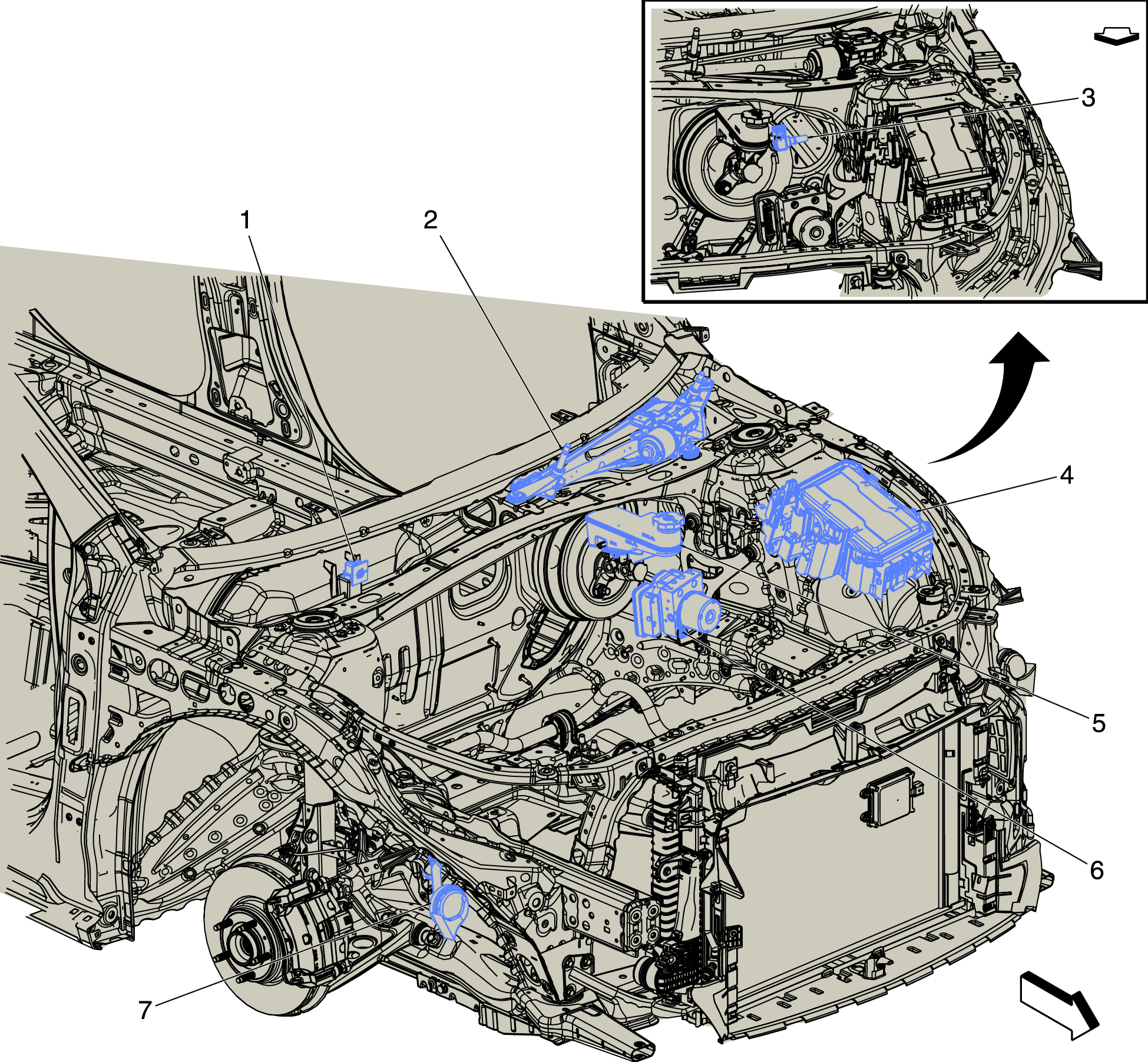

Fig 1: Left Side of the Engine Compartment Components

Courtesy of GENERAL MOTORS COMPANY
