Removal Procedure

  1. Clean the area around the throttle body from all dirt and debris.
  2. Air Cleaner Outlet Duct - Remove - Air Cleaner Outlet Duct Replacement

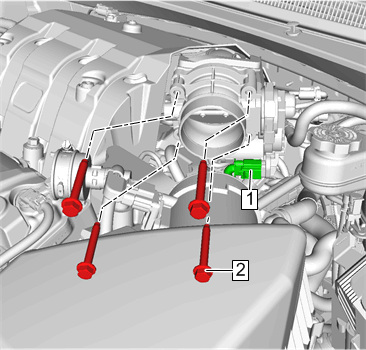

    3. Fig 1: Throttle Body Bolts
    GM4487690Courtesy of GENERAL MOTORS COMPANY
  3. Electrical Connector 1 - Disconnect
  4. Throttle Body Bolt 2 - Remove

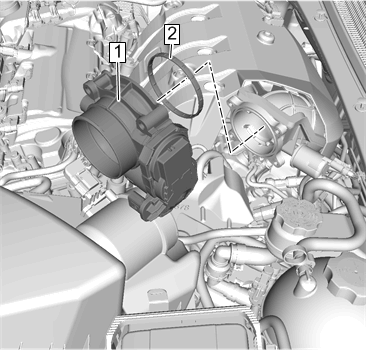

    5. Fig 2: Throttle Body
    GM4487693Courtesy of GENERAL MOTORS COMPANY
  5. Throttle Body 1 - Remove
  6. Throttle Body Gasket 2 - Remove and DISCARD
