Intake Air Duct Replacement

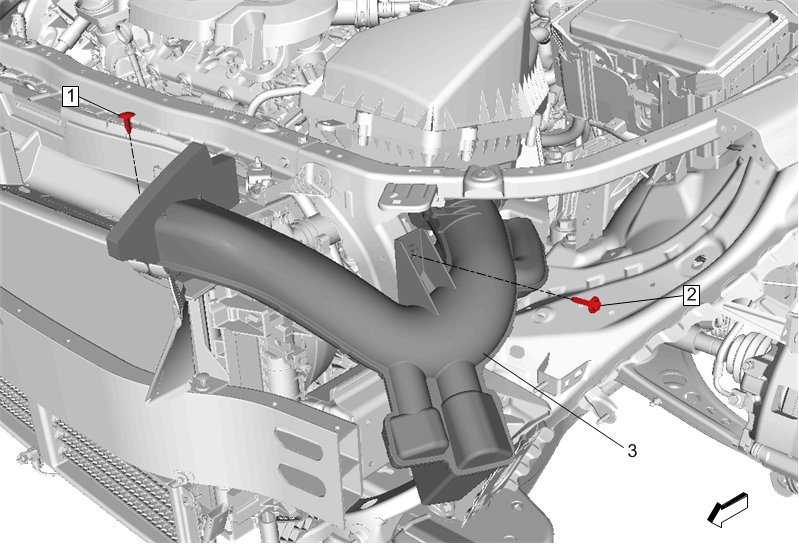

Fig 1: Intake Air Duct
GM4432779Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Headlamp Replacement (T4F)
  2. Front Bumper Fascia Replacement
1 Intake Air Duct Retainer
2 Intake Air Duct Bolt
CAUTION:

Fastener Caution


Tighten
9 N.m (80 lb in)
3 Intake Air Duct
