Installation Procedure

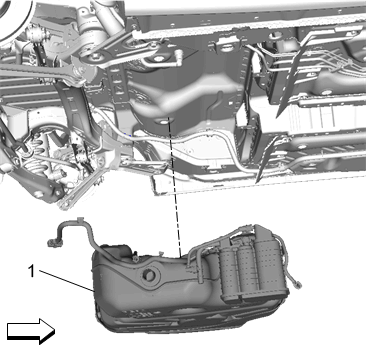

    Fig 1: Fuel Tank
    GM4447622Courtesy of GENERAL MOTORS COMPANY
  1. Place a suitable adjustable jack under the fuel tank.
  2. Fuel Tank 1 - Install

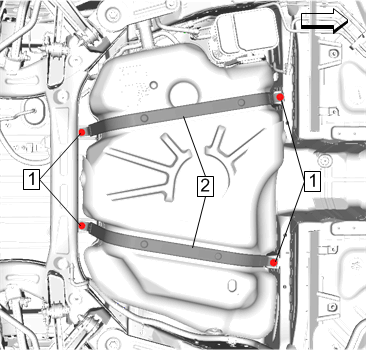

    3. Fig 2: Fuel Tank Strap
    GM4447619Courtesy of GENERAL MOTORS COMPANY
  3. Fuel Tank Strap 2 - Install
    4. CAUTION:

    Refer to Fastener Caution .

  4. Fuel Tank Strap Bolt 1 - Install 27 N.m (20 lb ft)

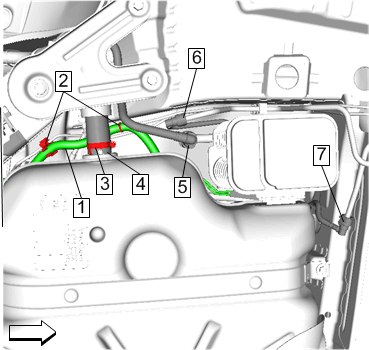

    5. Fig 3: Fuel Feed Pipe
    GM4447615Courtesy of GENERAL MOTORS COMPANY
  5. Fuel Feed Pipe (7) - Connect - Plastic Collar Quick Connect Fitting Service
  6. Evaporative Emission Canister Purge Pipe (6) - Connect - Plastic Collar Quick Connect Fitting Service
  7. Evaporative Emission Canister Air Inlet Hose (5) - Connect - Plastic Collar Quick Connect Fitting Service
  8. Fuel Tank Filler Hose (4) - Install
  9. Fuel Tank Filler Hose Clamp (3) - Install 4 N.m (35 lb in)
  10. Wiring Harness 1 @ Retainer 2 Install

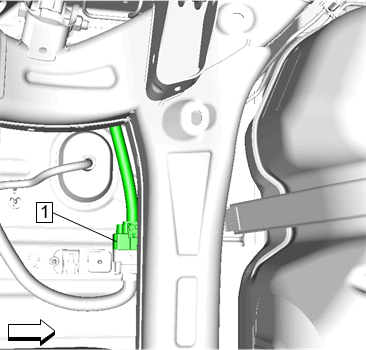

    11. Fig 4: Wiring Harness
    GM4447610Courtesy of GENERAL MOTORS COMPANY
  11. Wiring Harness 1 - Connect
  12. Exhaust Muffler - Install - Exhaust Muffler Replacement (FWD)Exhaust Muffler Replacement (AWD)
  13. Refill the fuel tank.
  14. Inspect for fuel leaks.
