Fuel Feed Front Pipe Replacement

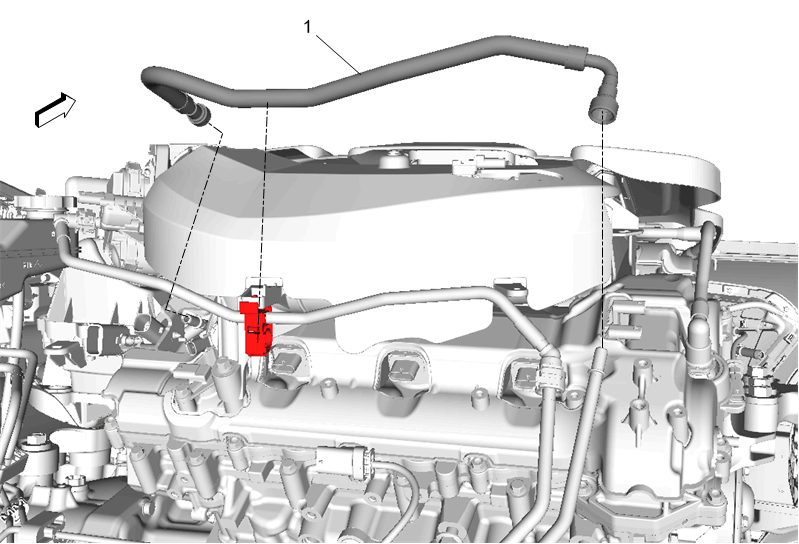

Fig 1: Fuel Feed Front Pipe
GM4455638Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Relieve the fuel system pressure. Fuel Pressure Relief
1 Fuel Feed Front Pipe
Procedure
Disconnect fuel feed front pipe and remove from retainer. Metal Collar Quick Connect Fitting Service
