Front Intake Air Duct Deflector Replacement

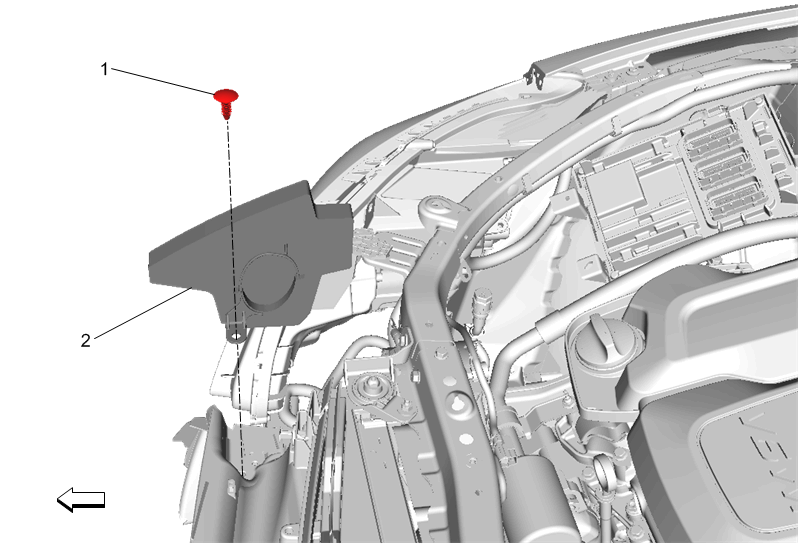

Fig 1: Front Intake Air Duct Deflector
GM4432606Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Bumper Fascia Replacement
1 Front Intake Air Duct Deflector Retainer
2 Front Intake Air Duct Deflector
